Evans EMAD Resonant Series: Controlled Resonance for the Front Head

While the EMAD system is primarily known for batter heads, Evans also applies similar principles to its resonant bass drumheads. The EMAD Resonant series focuses on providing control over the resonant side of the drum, enhancing attack and pitch focus, especially when mic'd.

22-inch Diameter for Bass Drum Resonant

The "22" in "BD22REMAD" indicates a 22-inch diameter drumhead. This is the standard size for the resonant (front) head of most common bass drums. "BD" signifies Bass Drum, and "RE" indicates Resonant.

Single-Ply Construction for Response and Sustain

The BD22REMAD is built with a single ply, which allows for good response:

• Single Ply of 10 mil Film (some sources state 7.5 mil): Most information points to a single ply of 10 mil Mylar film. This offers a good balance of responsiveness and durability for a resonant head. (Note: Some older descriptions or specific variants might mention 7.5 mil, but 10 mil is consistently cited for this model currently).

Black Finish for Aesthetics and Subtle Tone

The BD22REMAD comes in a black finish.

• Black Finish: Aesthetically, black resonant heads are popular for their sleek look. Sonically, a black film can offer a slightly warmer and more controlled tone than a clear resonant head, subtly reducing some of the brighter overtones.

Integrated Damping and Microphone Port

This is where the "EMAD Resonant" name truly comes into play:

• Fixed Internal Damping Ring: Unlike the interchangeable foam rings on EMAD batter heads, the EMAD Resonant features a fixed, internally mounted black plastic control ring that holds a foam damping ring around its edge. This ring helps to control unwanted overtones and shorten the sustain, giving the bass drum a more focused and "studio-ready" sound.

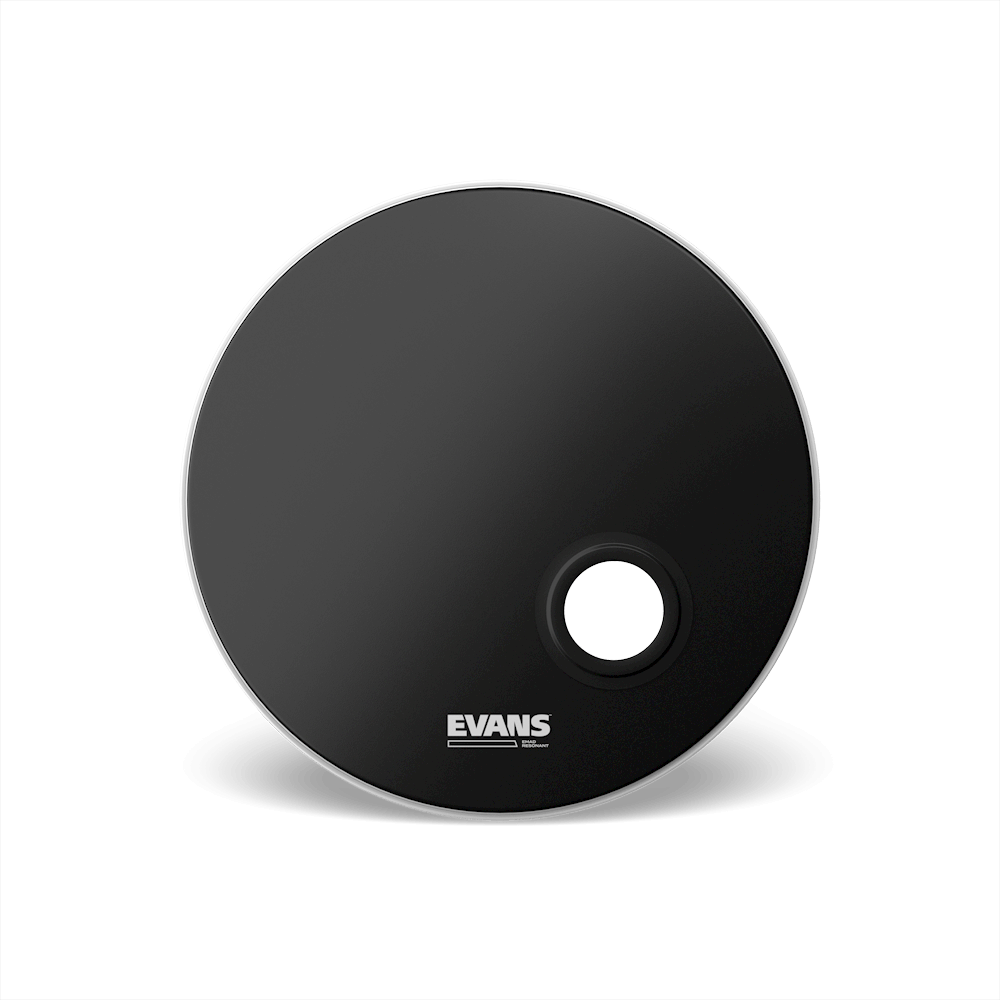

• Offset 4-inch Microphone Port: The head features a 4-inch diameter hole positioned off-center (offset). This port is crucial for:

  • Microphone Placement: Allows for easy and consistent placement of a microphone inside the bass drum, capturing the punch and low-end effectively.

  • Focused Pitch and Enhanced Attack: The port, often reinforced with a plastic sleeve (sometimes referred to as a "second-generation plastic sleeve" for durability), helps to focus the air movement and sound, enhancing the perceived pitch and punch of the bass drum's attack.

  • Air Movement: The port also allows air to escape, contributing to a quicker response and shorter sustain from the bass drum.

Level 360 Technology for Optimal Fit and Tuning

Like all modern Evans drumheads, the BD22REMAD incorporates Level 360 Technology. This innovative collar design ensures:

• Perfect Seating: The head sits evenly and completely flush with the drum's bearing edge, simplifying installation and maximizing full contact for optimal resonance and tuning stability.

• Effortless Tuning: The improved and consistent contact allows for quicker, easier, and more stable tuning across the entire head's surface.

• Extended Pitch Range: Drummers can achieve a wider array of usable pitches from their bass drum.

• Optimized Sound Quality: Ensures consistent and full contact with the drum shell, crucial for maximizing the drum's fundamental tone and articulation.

Sound Characteristics

The Evans BD22REMAD provides a resonant bass drum sound characterized by:

• Focused Low-End: Delivers a deep, pronounced bottom end without excessive boominess.

• Controlled Overtone: The internal dampening ring effectively reduces unwanted ringing and overtones.

• Enhanced Attack: The microphone port and overall design help to sharpen the perceived attack of the bass drum.

• Moderate Sustain: Offers enough sustain for body, but is controlled for clarity, especially in a mix.

• Microphone Optimization: Specifically designed to enhance the sound when a microphone is placed inside the drum.

Intended Use

The BD22REMAD is designed as a bass drum resonant (front) head. It is ideal for:

• Pairing with EMAD Batter Heads: It's the perfect complement to Evans EMAD series batter heads (like the BD22EMAD or BD22EMADHW), completing a controlled and powerful bass drum sound system.

• Rock, Gospel, Pop, Metal, Funk: Excellent for genres that require a punchy, focused, and well-defined bass drum sound that sits prominently in a mix.

• Studio Recording: Its built-in control and mic port make it very convenient for recording engineers to capture a clean, punchy kick drum sound.

• Live Performance: Ensures a consistent and powerful bass drum sound through a PA system.

• Drummers who mic their bass drum: The offset port is a key feature for convenient and effective miking.
