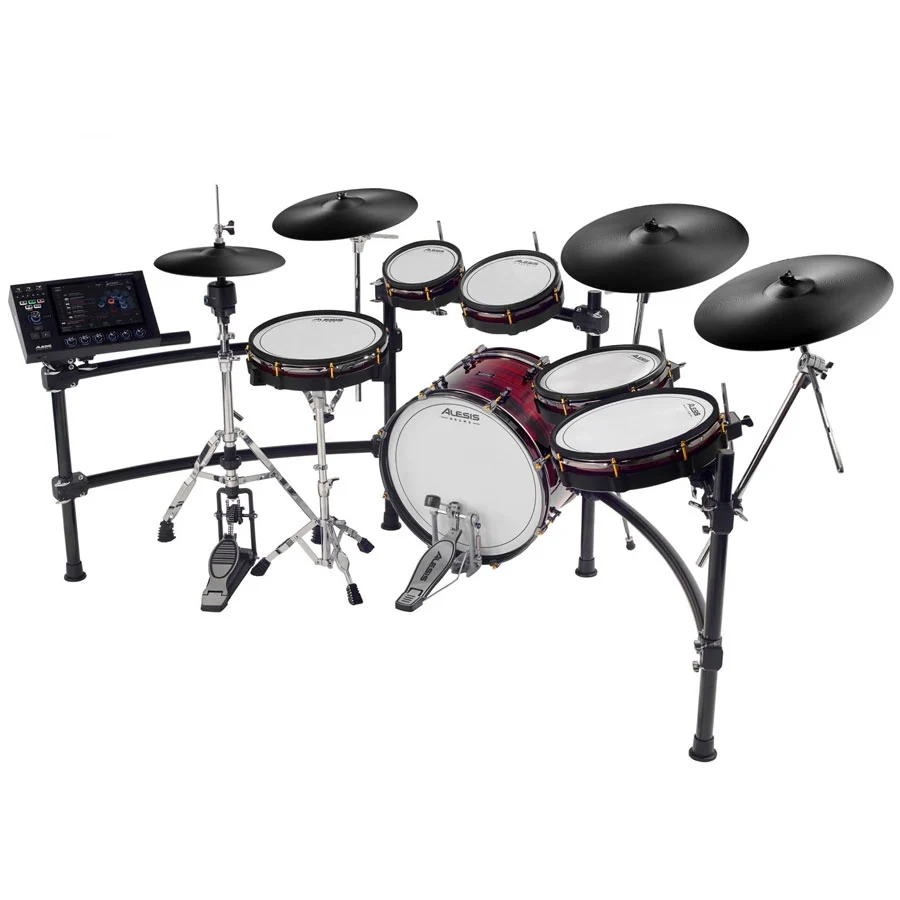

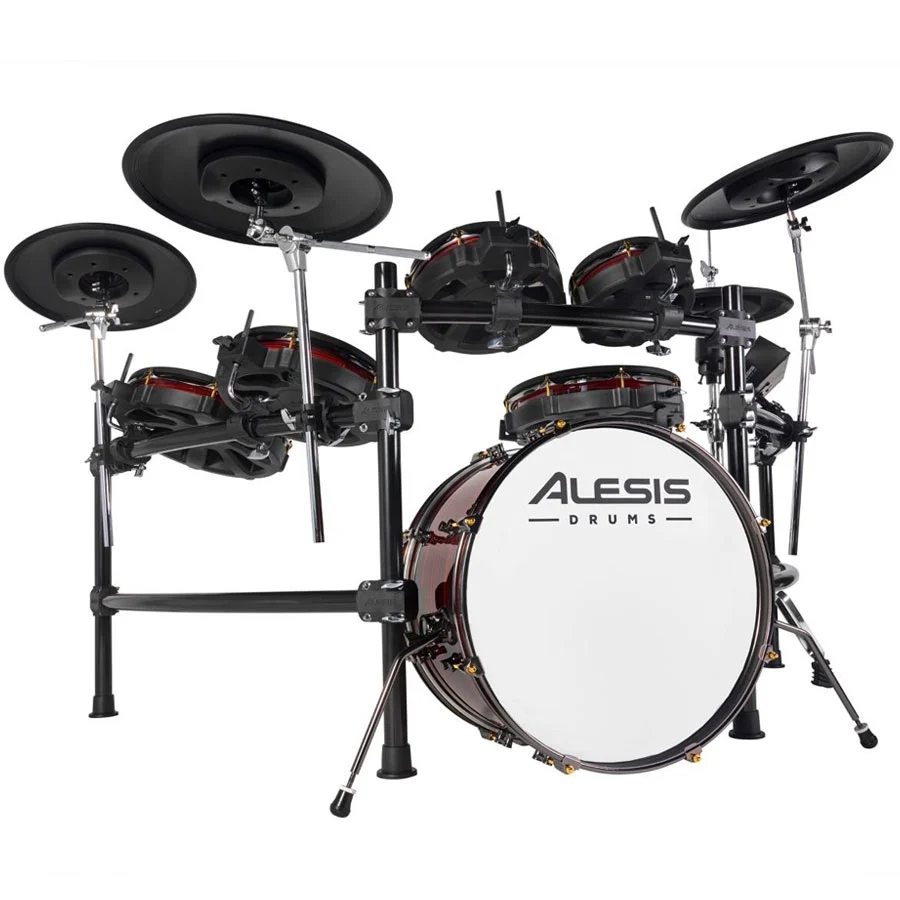

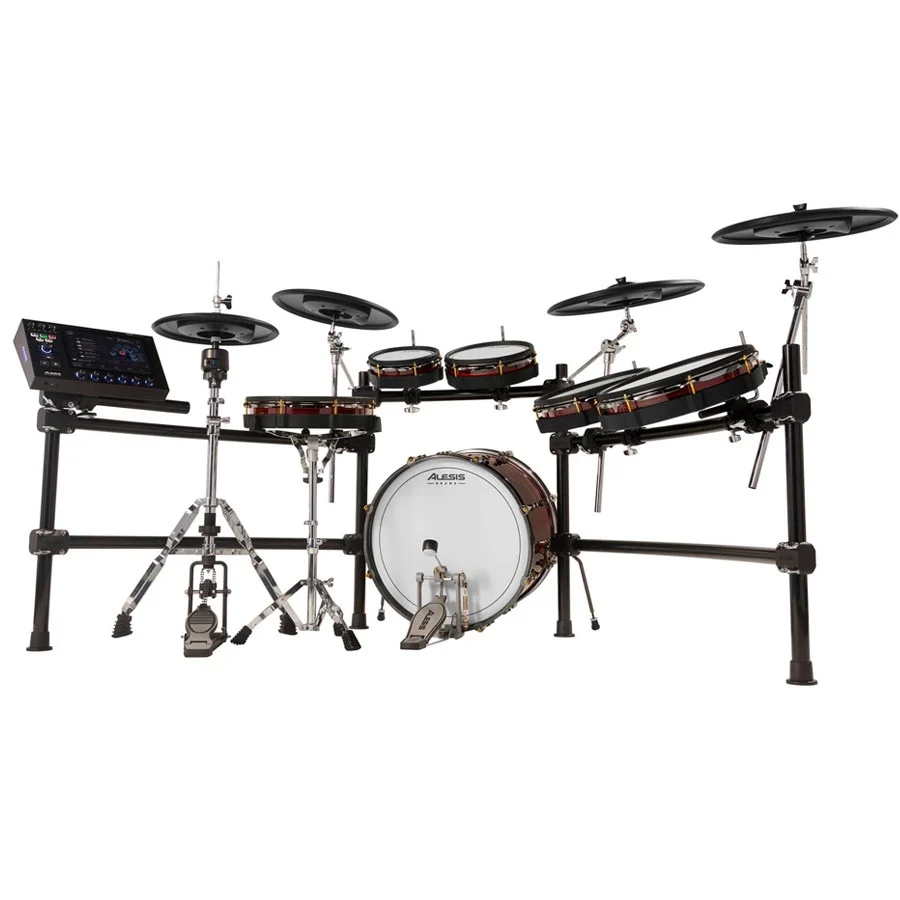

Advanced 9-piece electronic drum kit from Alesis' Strata Prime series, featuring high-end triggers, mesh heads, and sound module.








Advanced 9-piece electronic drum kit from Alesis' Strata Prime series, featuring high-end triggers, mesh heads, and sound module.
Inclusive of all taxes
EMI options available
Call our in-store experts for honest advice and clear answers. We're here to help you find the perfect gear, no guesswork needed.
080-40998370Feature | Specification |
Kit Configuration | |
Snare Pad | 14-inch Dual-Zone Deep Mesh Snare Pad |
Tom Pads | (4) Dual-Zone Mesh Tom Pads (8-inch, 10-inch, 12-inch, 14-inch) |

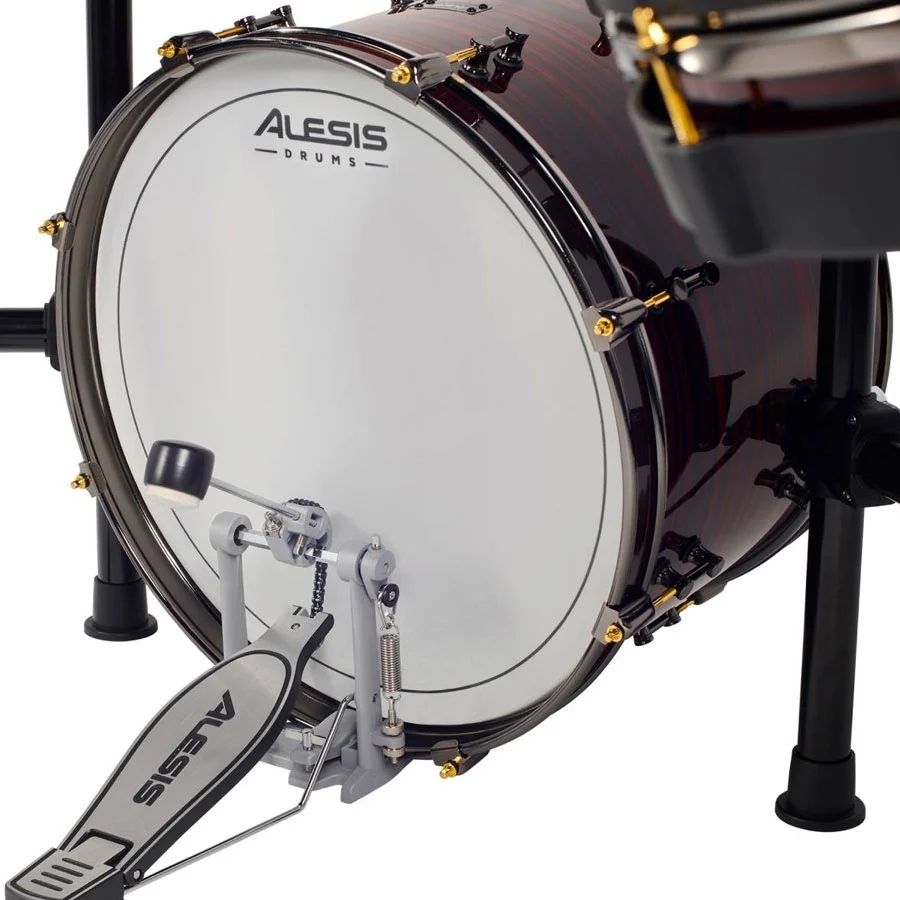

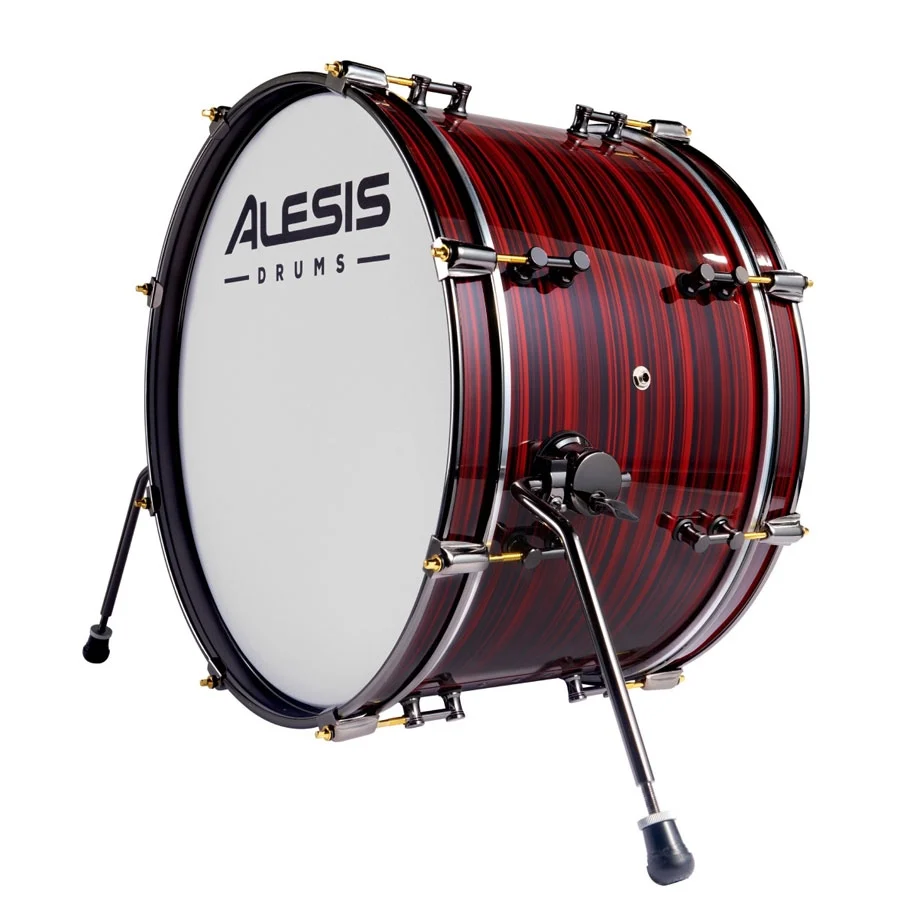

Kick Drum | 20-inch Mesh Kick Drum Tower (compatible with single/double pedals) |
Hi-Hat Cymbal | 14-inch Triple-Zone 360-degree Active Magnetic Hi-Hat System |
Crash Cymbals | (2) 16-inch Triple-Zone 360-degree ARC Crash Cymbal Pads with Choke |
Ride Cymbal | 18-inch Triple-Zone 360-degree ARC Ride Cymbal Pad with Choke |
Rack | 4-Post Powder-Coated Steel Rack (double-braced, locking clamps, acoustic-style spacing) |

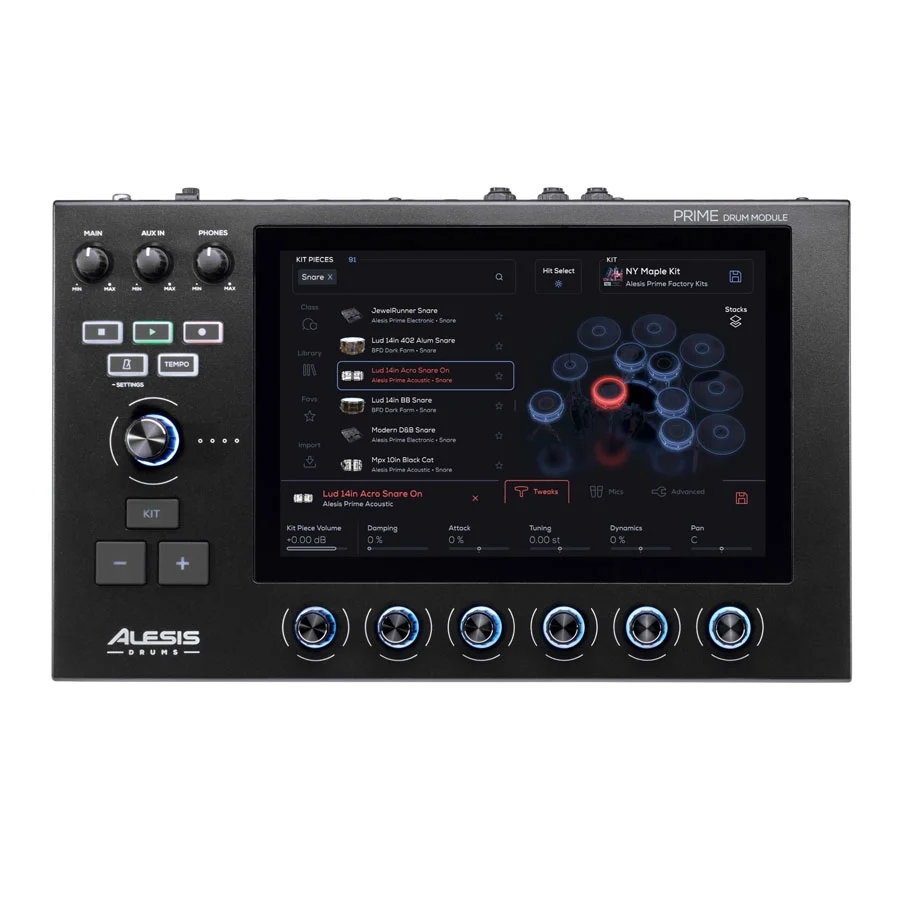

Prime Drum Module | |
Sound Engine | BFD Drum Engine (multi-core processor) |
Internal Storage | 128GB (40GB+ preloaded content) |
Drum Kits | 75 Factory Preset Kits + 16 User Kits (expandable with virtually unlimited user kits) |
Sounds | 440+ Kit Pieces, 1,000+ Sound Articulations, 215,000+ Individual Samples |
Display | 10.1-inch Multi-Touch Display |
Controls | 6 Rotary Encoders, Main Push Encoder, Transport Controls, Dedicated Volume Knobs |
Trigger Engine | Customizable Trigger Engine with Automatic Crosstalk Filtering |
Effects | Reverb, 3-Band EQ, and more (extensive mixing capabilities for individual mics, groups, etc.) |
Bluetooth | Bluetooth Audio Streaming (v5.0/4.2, A2DP profile) |
Connectivity | |
USB | USB Type-A (storage), USB Type-B (MIDI to computer) |
MIDI I/O | MIDI In/Out (5-pin DIN) |
Analog Inputs | (2) 1/4” (6.35mm) TRS Aux Inputs (L/Mono, R) |
Analog Outputs | (2) XLR Main Outputs (balanced), (4) 1/4” (6.35mm) TRS Assignable Outputs |
Headphone Outputs | (1) 1/4” (6.35mm) TRS, (1) 1/8” (3.5mm) TRS |
Trigger Inputs | (7) 1/4” (6.35mm) TRS (Kick, Snare, Tom1-4, Aux), (5) 1/4” (6.35mm) TRS (Ride, Crash1-4), (2) 1/4” (6.35mm) TRS (Hi-Hat Cymbal, Hi-Hat Controller) |
SD Card Slot | Yes |
Power | Included AC Adapter |
Included Accessories | |
Physical Accessories | Kick Pedal, Hi-Hat Stand (Hi-Hat controller mounts to standard stand), Drum Key, Connection Cables, Drum Sticks |
Software & Education | |
Drumeo Subscription | 90-Day Free Subscription |
BFD Player | Free Virtual Drum Instrument with Expansion Pack (for Mac/PC) |
Melodics | 60 Free Lessons + 30-Day Melodics Premium Subscription |
Physical Data (Module) | |
Dimensions (W x D x H) | 96.93 cm W x 57.61 cm D x 120.98 cm H (approx. 38.16” W x 22.68” D x 47.63” H, varies with setup) |
Weight | 30 kg (66.1 lbs) (entire kit package, estimated) |
