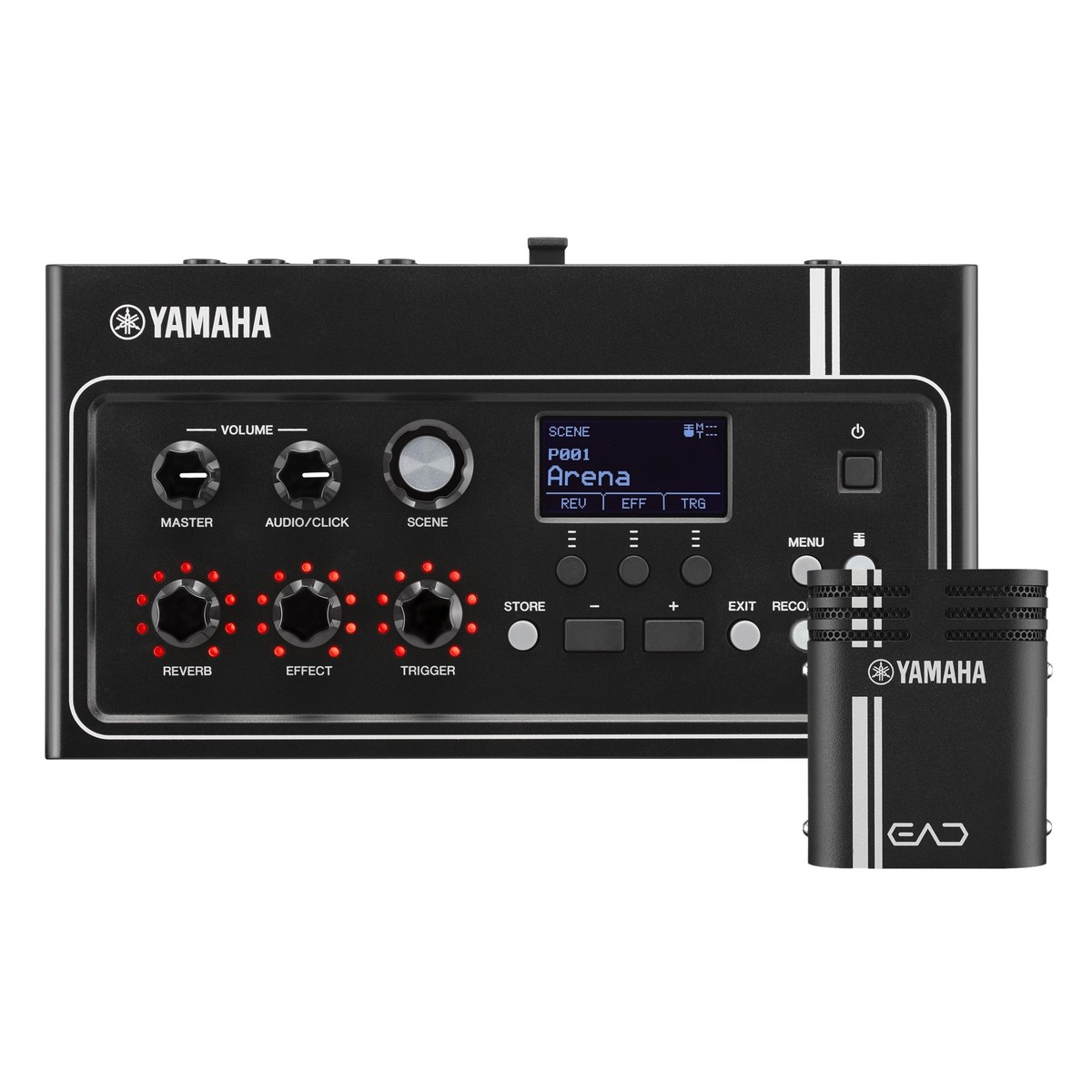

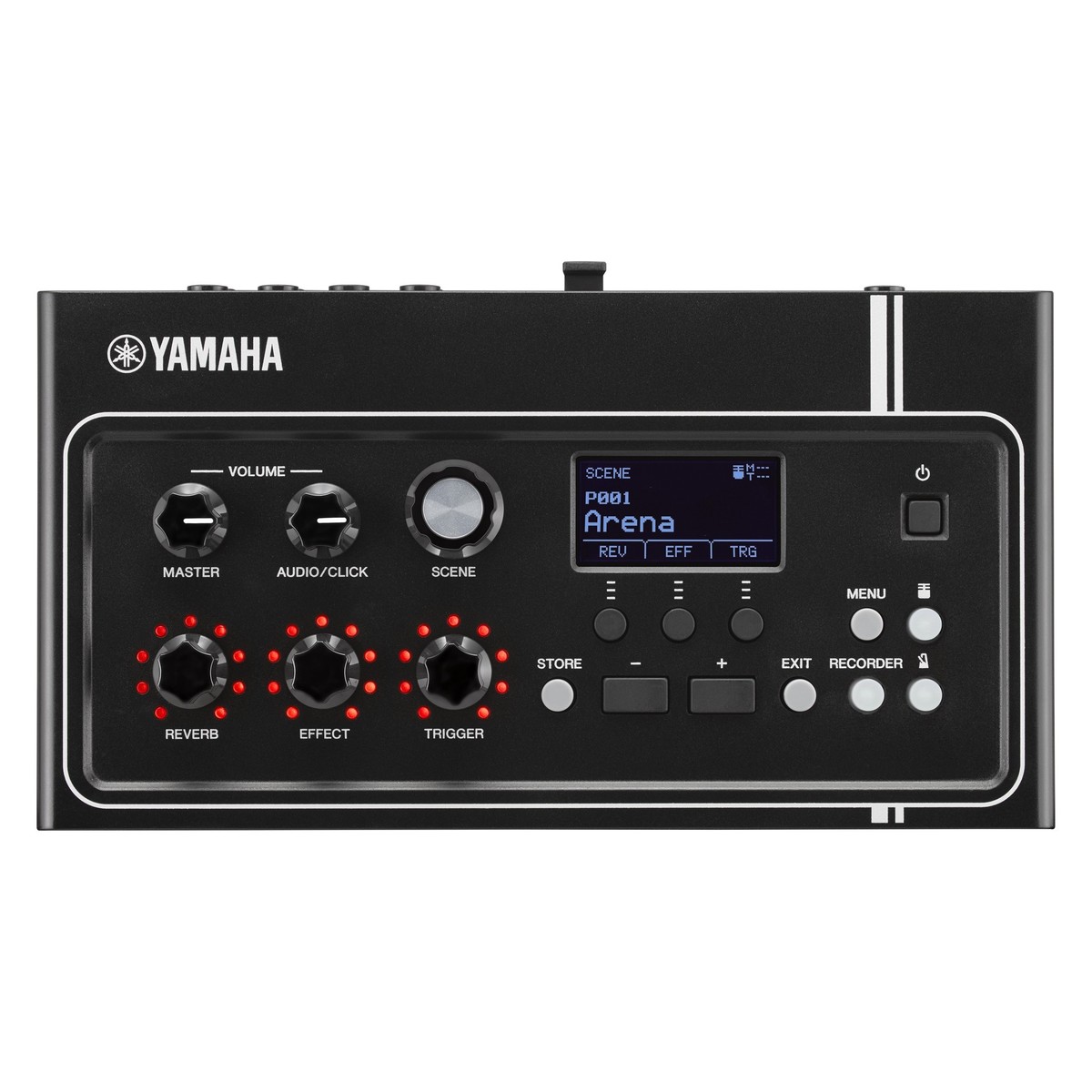

Yamaha EAD10 Electronic Acoustic Drum Module
The EAD10 acoustic electronic drum module instantly transforms your acoustic drum kit into a powerful digital/electric hybrid with sampled sounds and studio-quality effects.
Yamaha EAD10 Electronic Acoustic Drum Module
The EAD10 acoustic electronic drum module instantly transforms your acoustic drum kit into a powerful digital/electric hybrid with sampled sounds and studio-quality effects.
Technical Specifications
Category | Specification |
|---|---|
Dimensions | Width: 260 mm (main unit), 76 mm (sensor unit) |
Height: 63 mm (main unit), 88 mm (sensor unit) | |
Depth: 138 mm (main unit), 78 mm (sensor unit) | |
Weight | 654 g (main unit), 464 g (sensor unit) |
Scenes | Preset: 50, User: 200 |
Reverb | 11 |
Effects | Mic: 21, Trigger: 10 |
Tone Generator | AWM2 |
Maximum Polyphony | 64 |
Voices | 757 |
Recording Time | Internal memory: Approx. 1 min 30 sec |
USB flash drive: Approx. 90 min/file | |
Recording Format | Record/playback: WAV (44.1 kHz, 16 bit, stereo) |
Import Limit | Up to 100 |
Playback Sample Format | 44.1 kHz |
Wave Memory | 32 MB |
Maximum Loadable Sample Size | 1 mono sample: 1.75 MB, 1 stereo sample: 3.5 MB |
Sample Format | WAV (16 bit) |
Tempo | 30–300 BPM, tap tempo function |
Time Signatures | 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16 |
Subdivisions | Accents, quarter notes, eighth notes, sixteenth notes, and eighth-note triplets |
Functions | Trigger sensitivity adjustment, USB audio/MIDI, headphone EQ, metronome, auto power off |

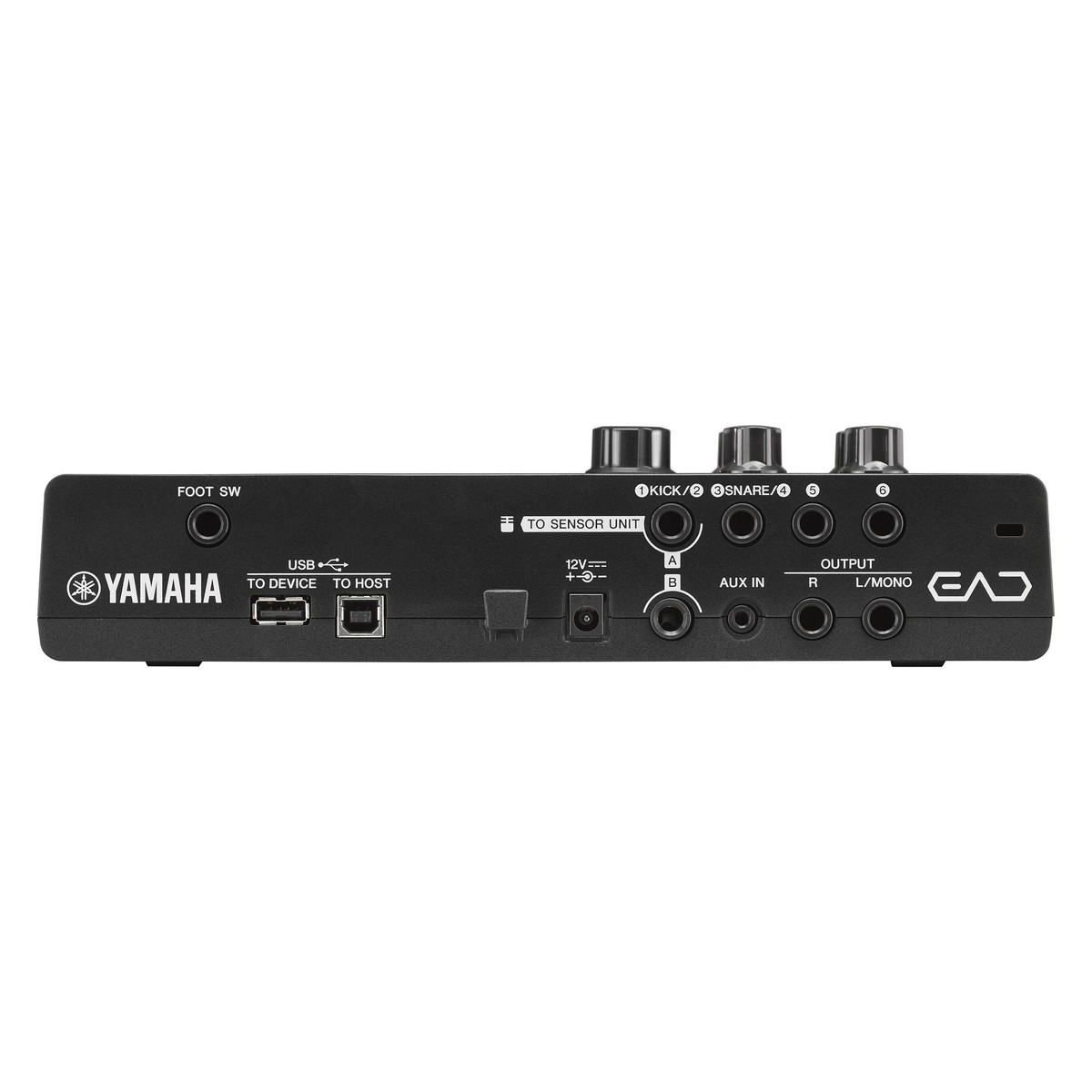

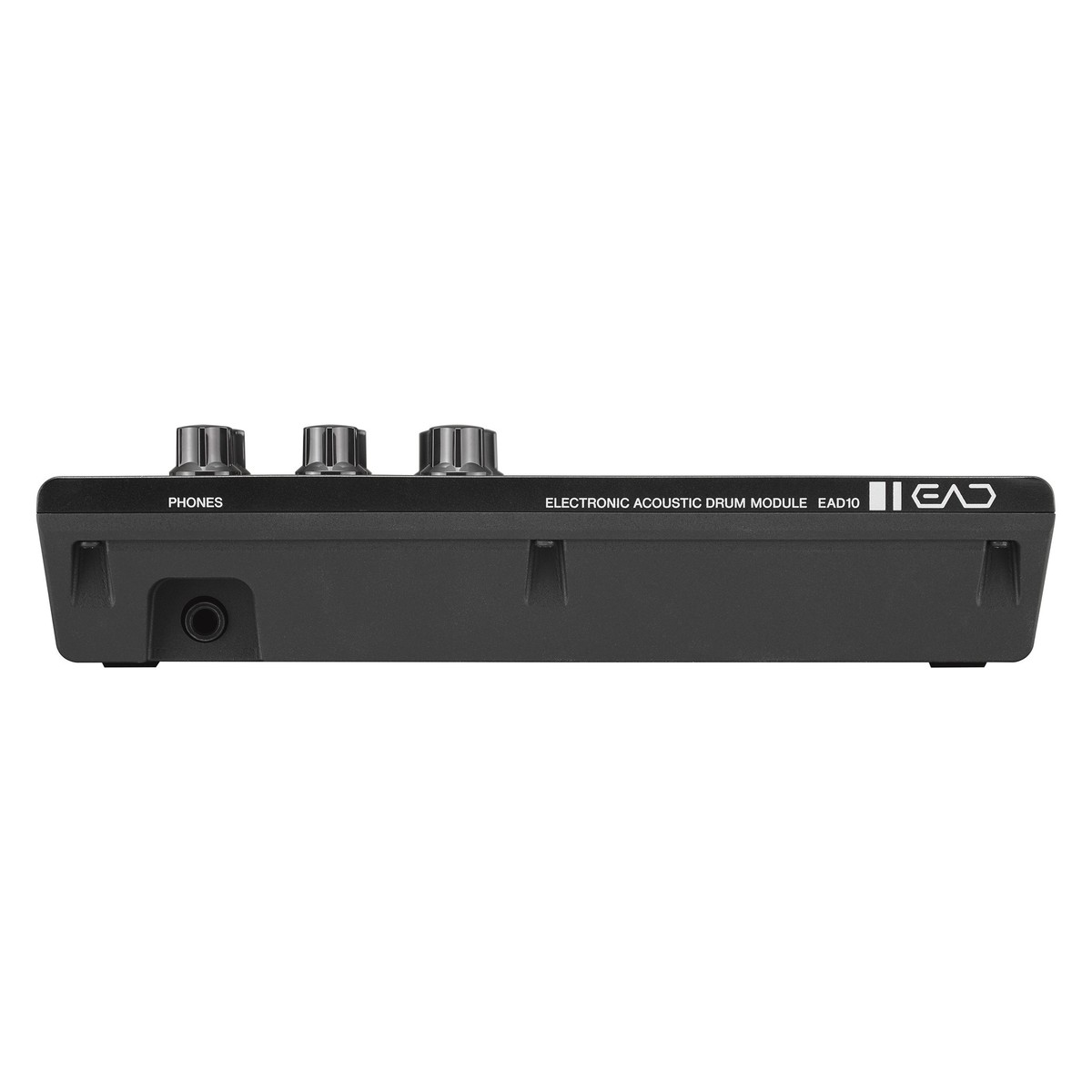

Connectors | DC IN (12 V), PHONES (standard stereo phone), AUX IN (stereo mini), OUTPUT L/MONO, R (standard mono phone), USB TO DEVICE, USB TO HOST |

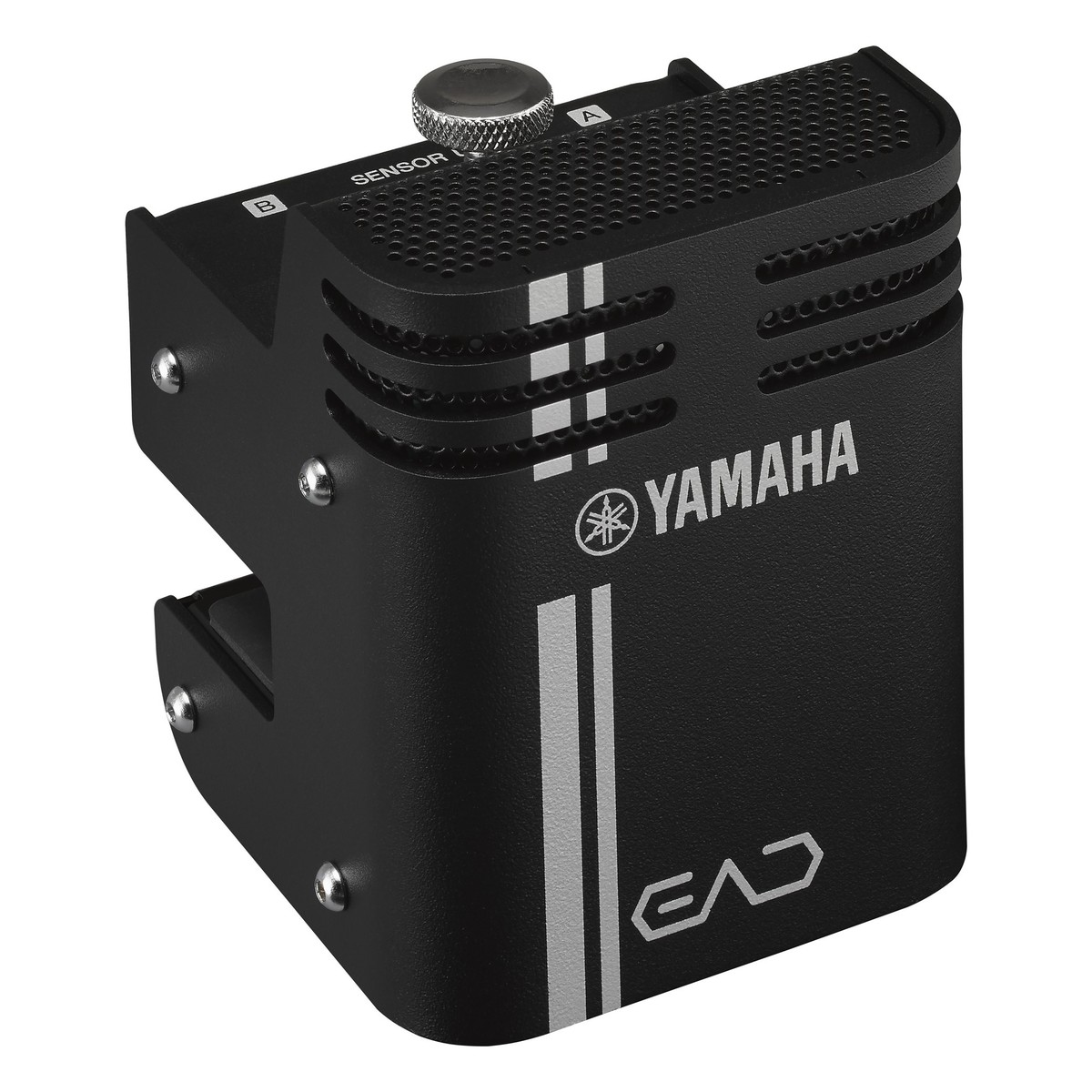

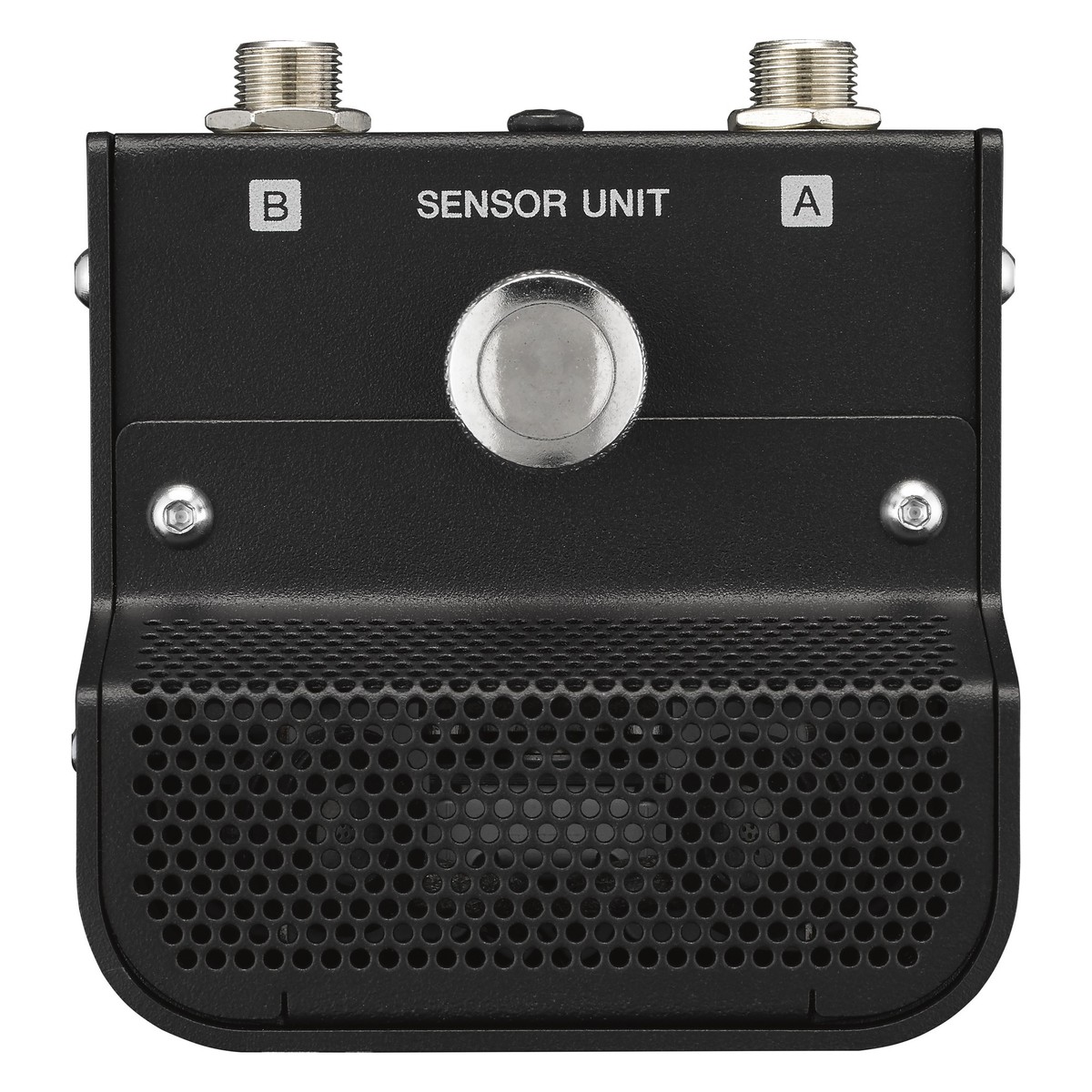

Sensor Unit | For Trigger sensor: A (standard stereo phone) |
For Mic sensor: B (standard stereo phone) | |
Trigger Input | Stereo (L: trigger, R: trigger): 1 KICK/2 (also serves as A), 3 SNARE/4 (standard stereo phone) |
Three-zone (L: trigger, R: rim switch): 5, 6 (standard stereo phone) | |
Foot Pedal | FOOT SW (standard stereo phone) |

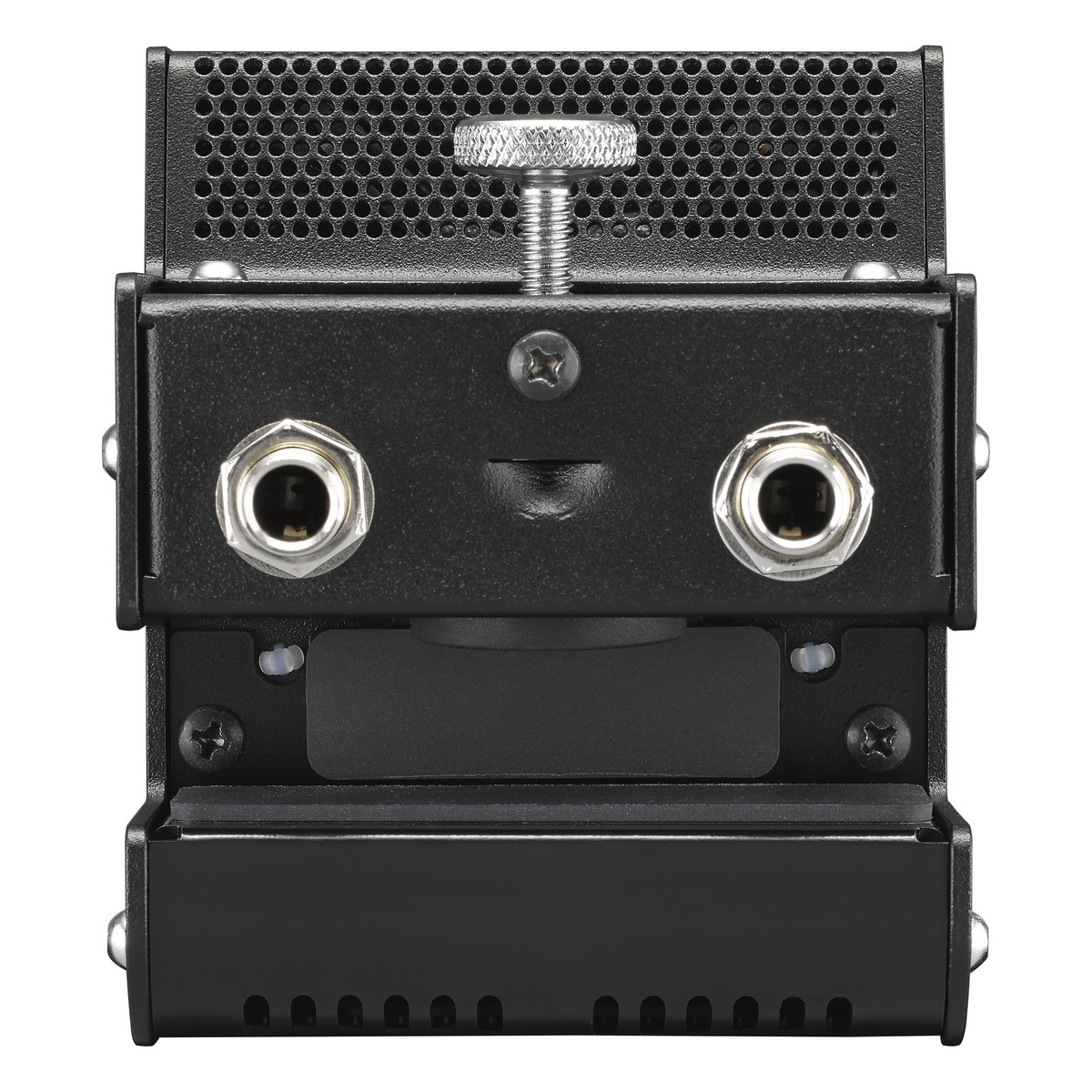

Sensor Outputs | For Trigger sensor: A (standard phone) |
For Mic sensor: B (standard stereo phone) | |
Microphone | High SPL mic × 2 |
Trigger | Exclusive for bass drum × 1 |
Included Accessories | Owner’s manual, PA-150 (or an equivalent recommended by Yamaha), module holder, module holder wing bolts (× 2), connector cables (1 pair), cable bands (× 3), adhesive cushions (× 2) |
