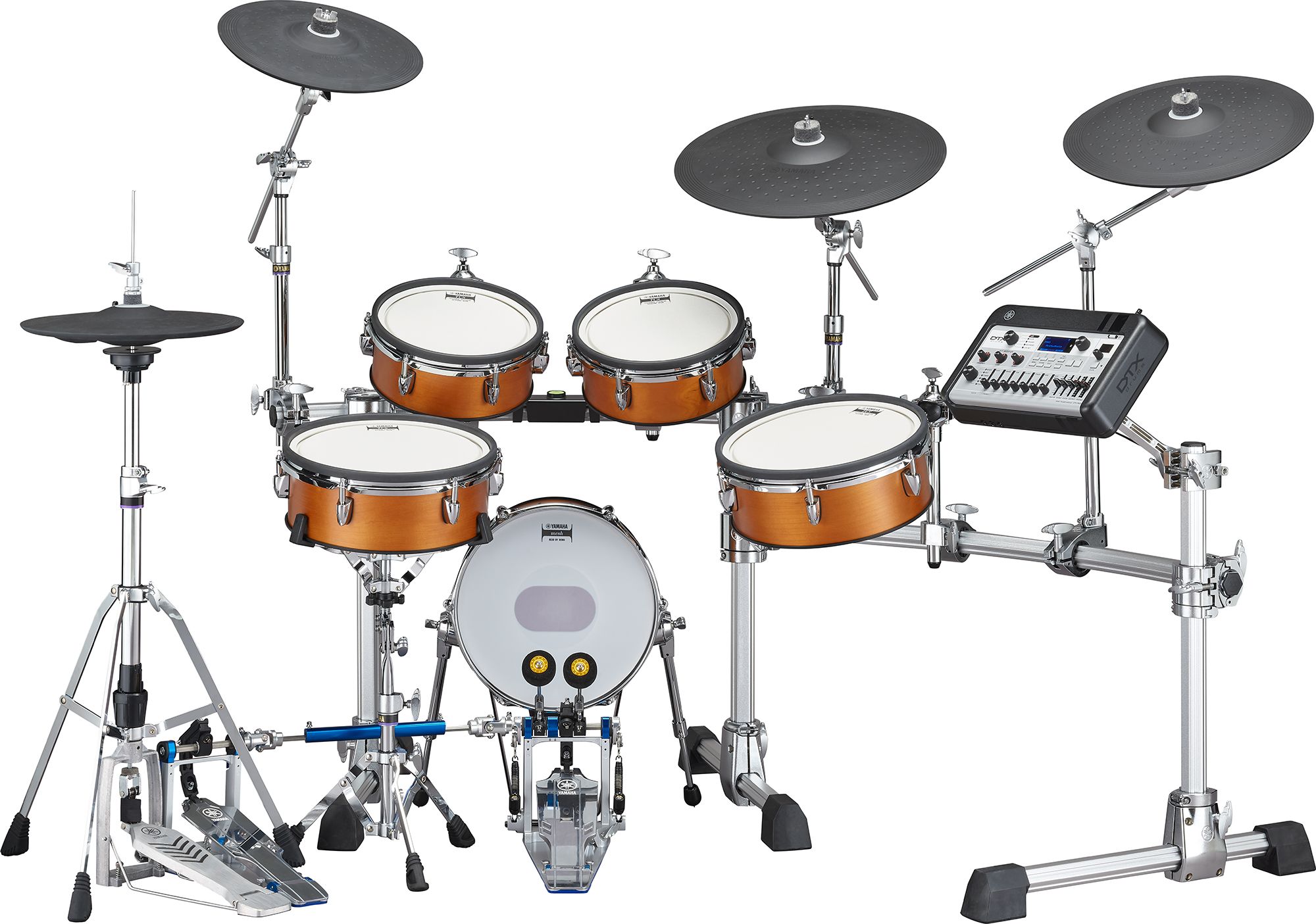

Yamaha DTX10K-X Digital Drums - Real Wood Finish
Flagship electronic drum kit series from Yamaha featuring TCS heads, real wood shells, and the DTX-PROX module for ultimate realism.
Yamaha DTX10K-X Digital Drums - Real Wood Finish
Flagship electronic drum kit series from Yamaha featuring TCS heads, real wood shells, and the DTX-PROX module for ultimate realism.
₹ 4,94,205
-8%MRP:₹ 5,37,180
Inclusive of all taxes
EMI options available
ASK AN EXPERT
Call our in-store experts for honest advice and clear answers. We're here to help you find the perfect gear, no guesswork needed.
080-40998370Technical Specifications
Feature | Specification |

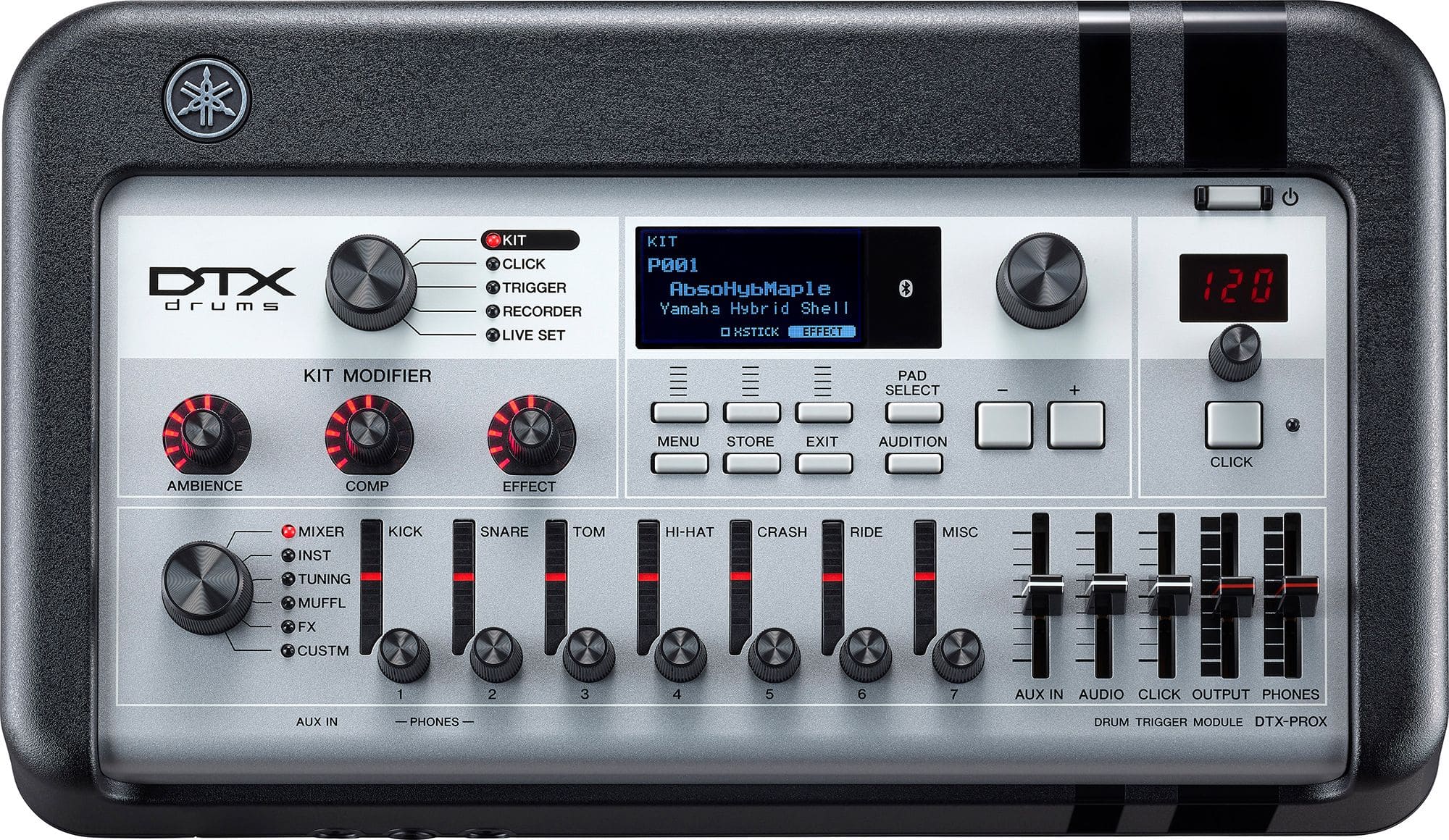

Module | DTX-PROX Drum Module |

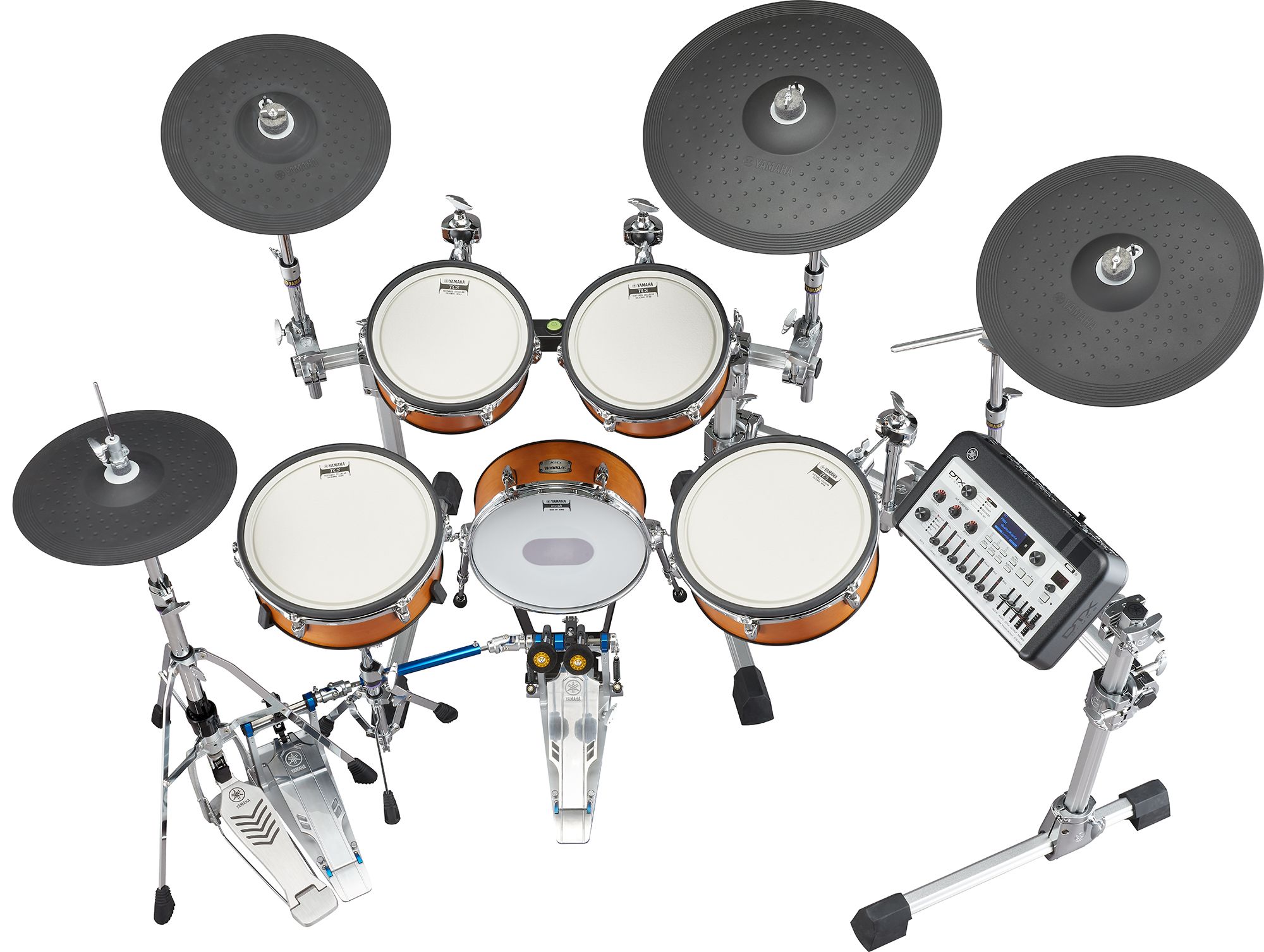

Kit Configuration | |

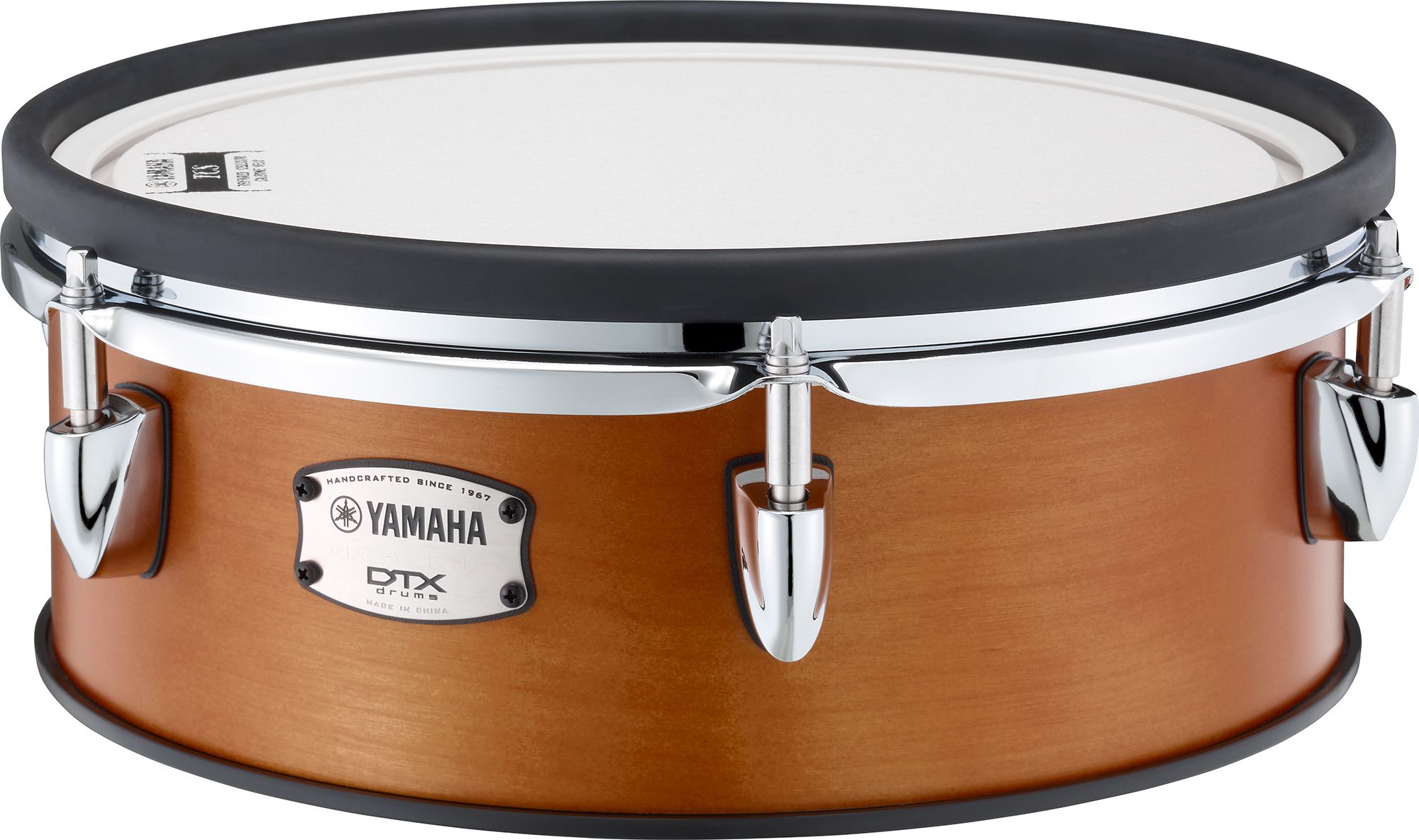

Snare Pad | 12-inch XP125SD-X TCS (Textured Cellular Silicone) Head, 2-Zone, Real Wood Shell |
Tom Pads | (2) 10-inch XP105T-X TCS Head, 2-Zone, Real Wood Shell |
Floor Tom Pad | 12-inch XP125T-X TCS Head, 2-Zone, Real Wood Shell |

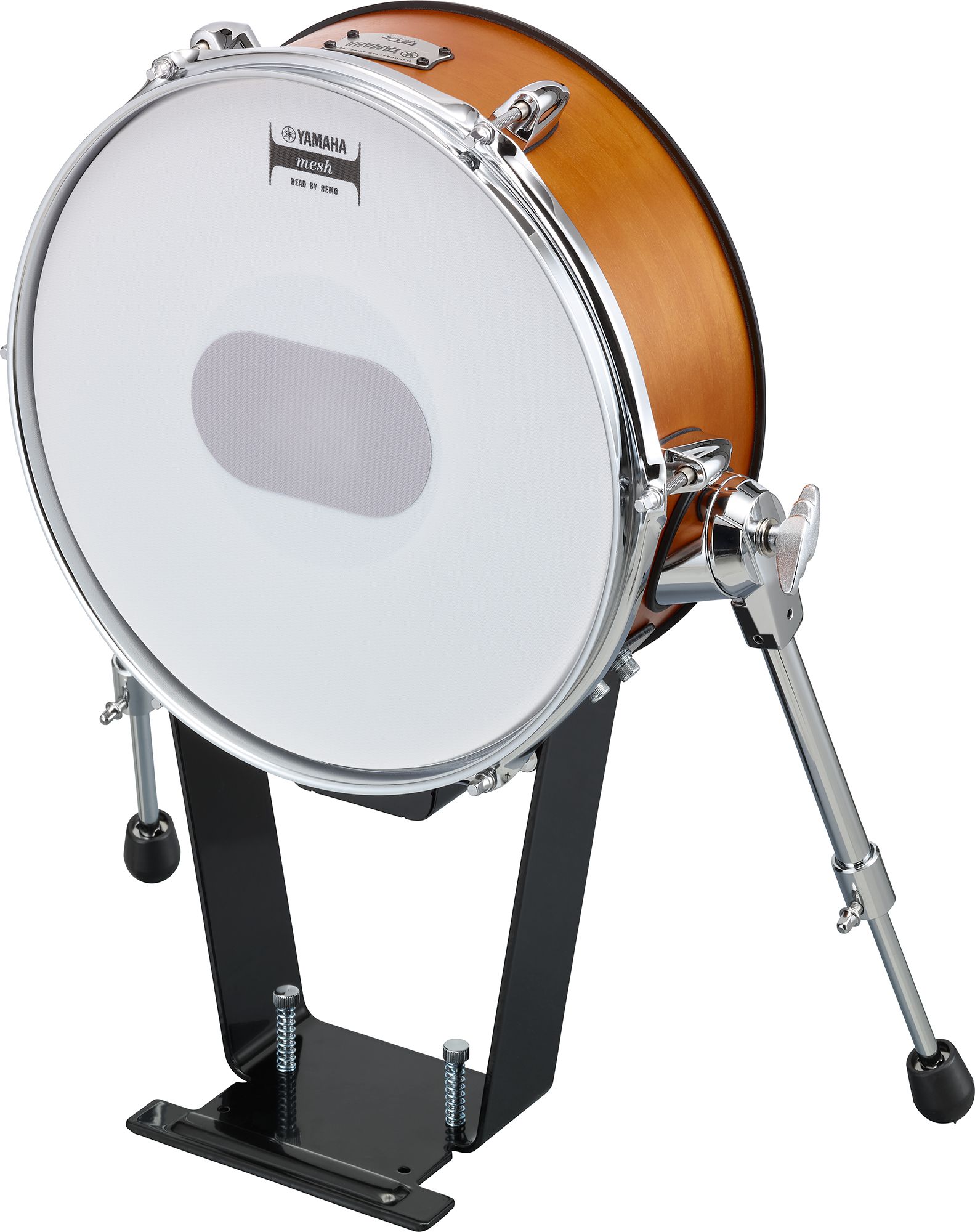

Kick Drum | 12-inch KP128 Mesh Head with Multi-Layer Cushion (double pedal compatible, pedal not included) |
Hi-Hat Cymbal | 13-inch RHH135 2-Zone Pad |
Hi-Hat Stand | Yamaha HS740A Hi-Hat Stand |
Crash Cymbals | (1) 13-inch PCY135 3-Zone Pad with Choke |
(1) 15-inch PCY155 3-Zone Pad with Choke | |
Ride Cymbal | 17-inch PCY175 3-Zone Pad with Positional Sensing |

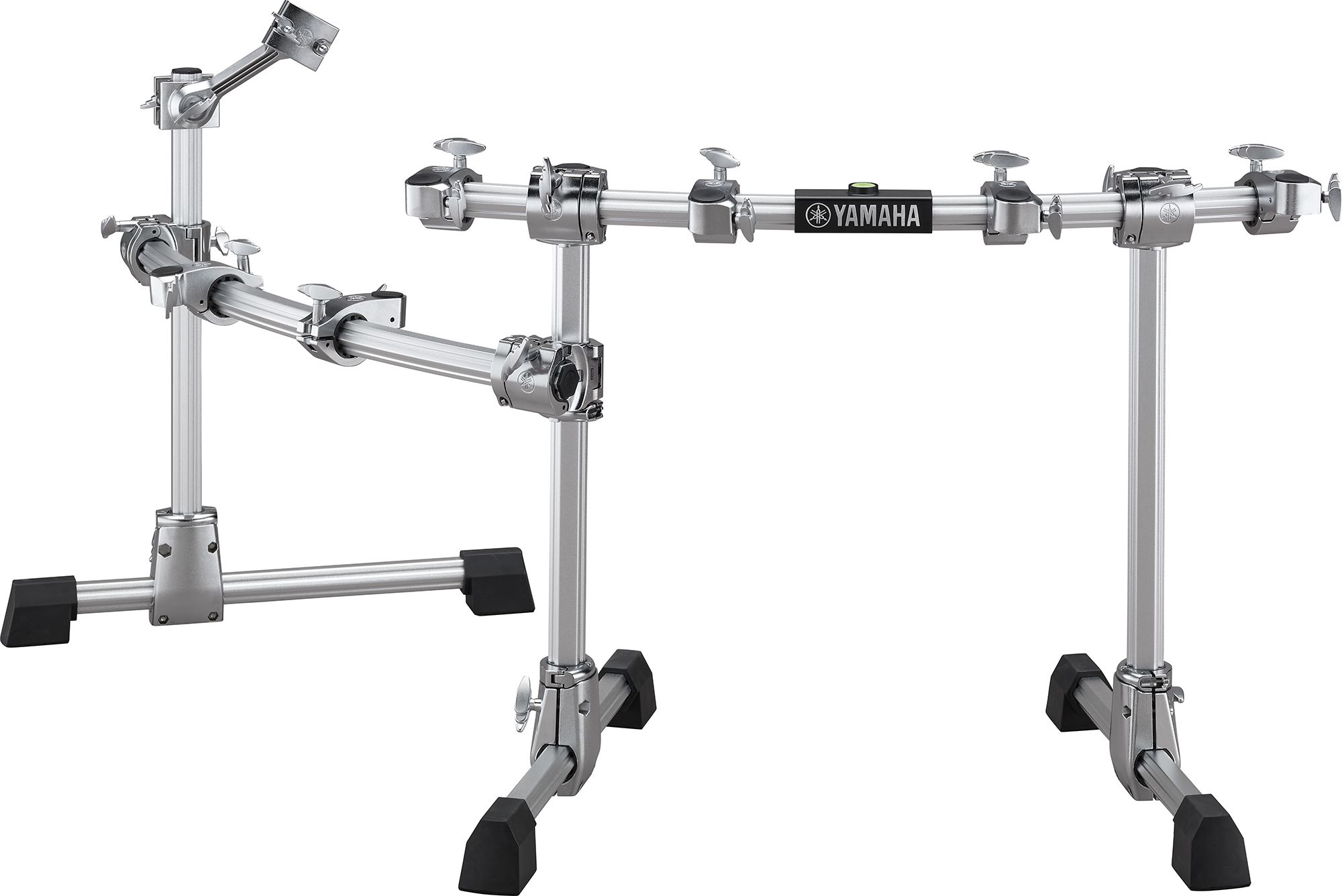

Rack System | RS10-HXR Hex Rack System |
Snare Stand | SS662 Snare Stand |
Sound Engine | AWM2 (Advanced Wave Memory 2) |
Maximum Polyphony | 256 notes |
Voices | 733 Drum and Percussion Voices |
Drum Kits | 70 Preset Kits, 200 User Kits |
Kit Modifier | AMBIENCE, COMPRESSION, EFFECT (dedicated knobs) |
Effects (Instrument) | EQ, Compressor, Transient, Insertion Effects (per channel) |
Effects (Kit/Master) | Ambience, Effect 1, Effect 2, Master Comp, Master Effect, Master EQ, Phones EQ |
Metronome | 30 User Click Sets, 30-300 BPM (Tap Tempo), various time signatures/subdivisions |
Training Functions | 10 Training Types, 37 Preset Training Songs, 1 User Song |
Audio Files | Import Limit: 1000 WAV files; Max loadable sample time: 50 min 40 sec (Mono), 25 min 20 sec (Stereo) @ 44.1 kHz, 16 Bit |
Recorder | Internal Memory: Max 90 seconds; USB Flash Drive: Max 90 minutes per file (WAV 44.1 kHz, 16-Bit, Stereo) |
Display | Full Dot LCD (128x64 Dots) |

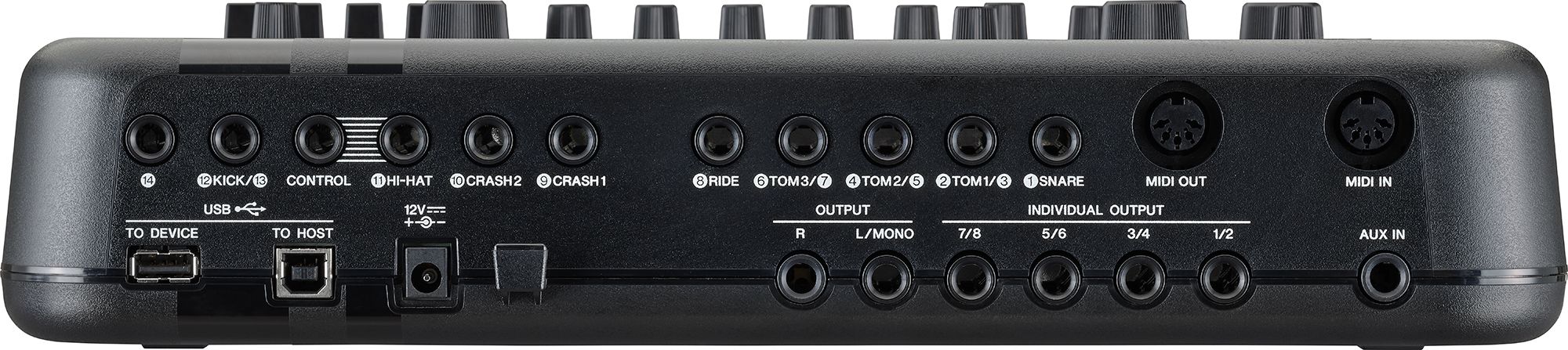

Connectivity | |
DC In | DC IN (+12V) |
Headphones | (1) 1/4" (6.35 mm) Stereo Jack, (1) 1/8" (3.5 mm) Stereo Mini Jack |
AUX IN | (1) 1/8" (3.5 mm) Stereo Mini Jack, (1) 1/4" (6.35 mm) Stereo Standard Phone Jack (2 total) |
Main Outputs | (2) 1/4" (6.35 mm) Standard Phone Jack (L/Mono, R) |
Individual Outputs | (4) Stereo 1/4" (6.35 mm) Standard Phone Jack (provides 8 individual outputs) |
USB | USB TO DEVICE (Type A), USB TO HOST (Type B) |
MIDI | MIDI OUT x 1, MIDI IN x 1 |
Trigger Inputs | 10 x 1/4" (6.35 mm) TRS (supports up to 14 pads with Y-cables) |
Bluetooth | Audio (availability varies by country) |
Power Consumption | 11 W (module) |
Module Dimensions | 34.2 x 19.6 x 6.6 cm (13.46" x 7.72" x 2.6") |
Module Weight | 2.0 kg (4 lbs 7 oz) |
Average Footprint | 1,100 mm x 1,600 mm (approx.) |
Kit Weight | 46.77 kg (103.1 lbs) (entire kit, approximate) |
Included Software | Cubase AI download code |
Included Accessories | Module Holder, Module Holder Wing Bolts (x4), Owner's Manual, 10-Channel Snake Cable, Cable Bands, Drum Key |
Available Finishes | Real Wood, Black Forest |
