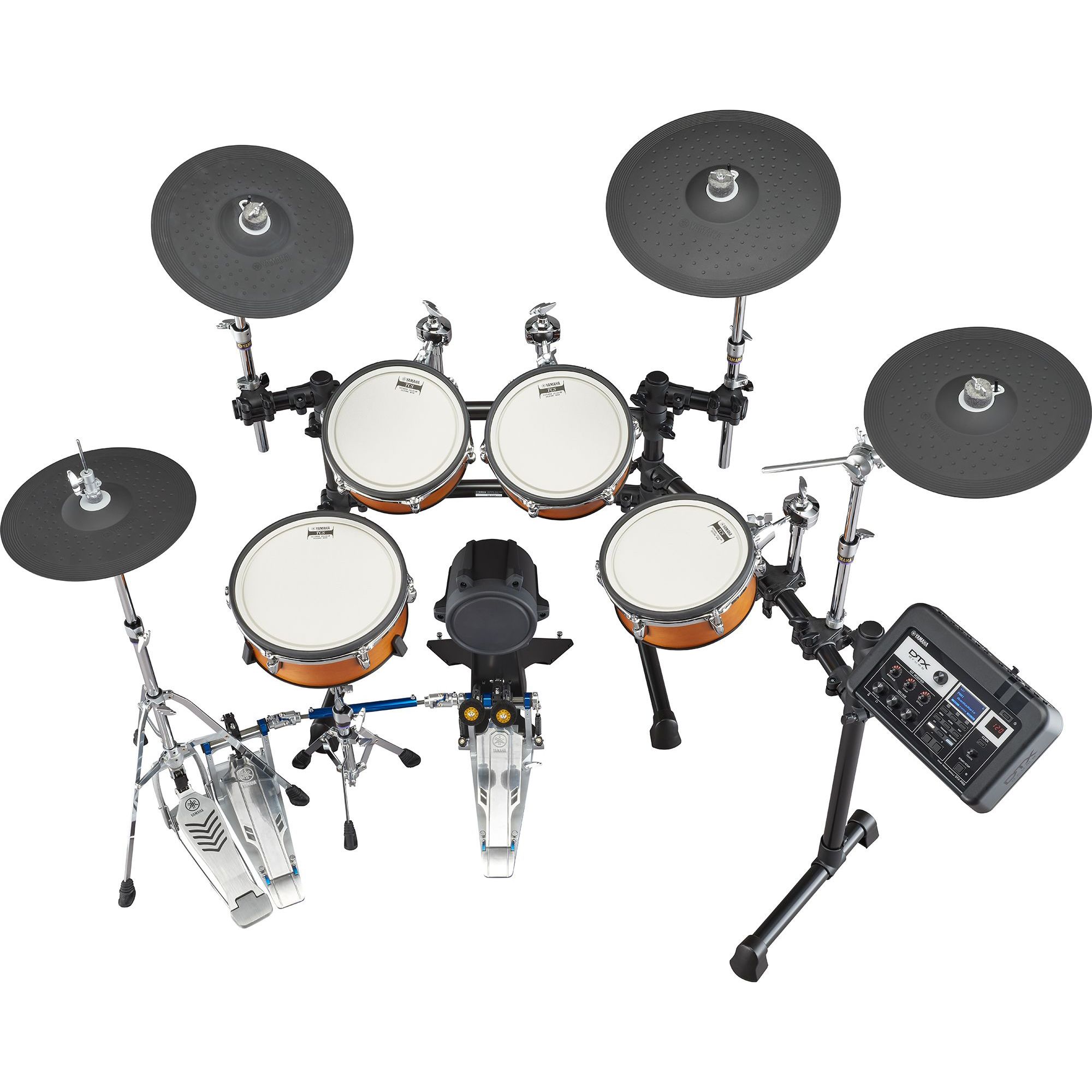

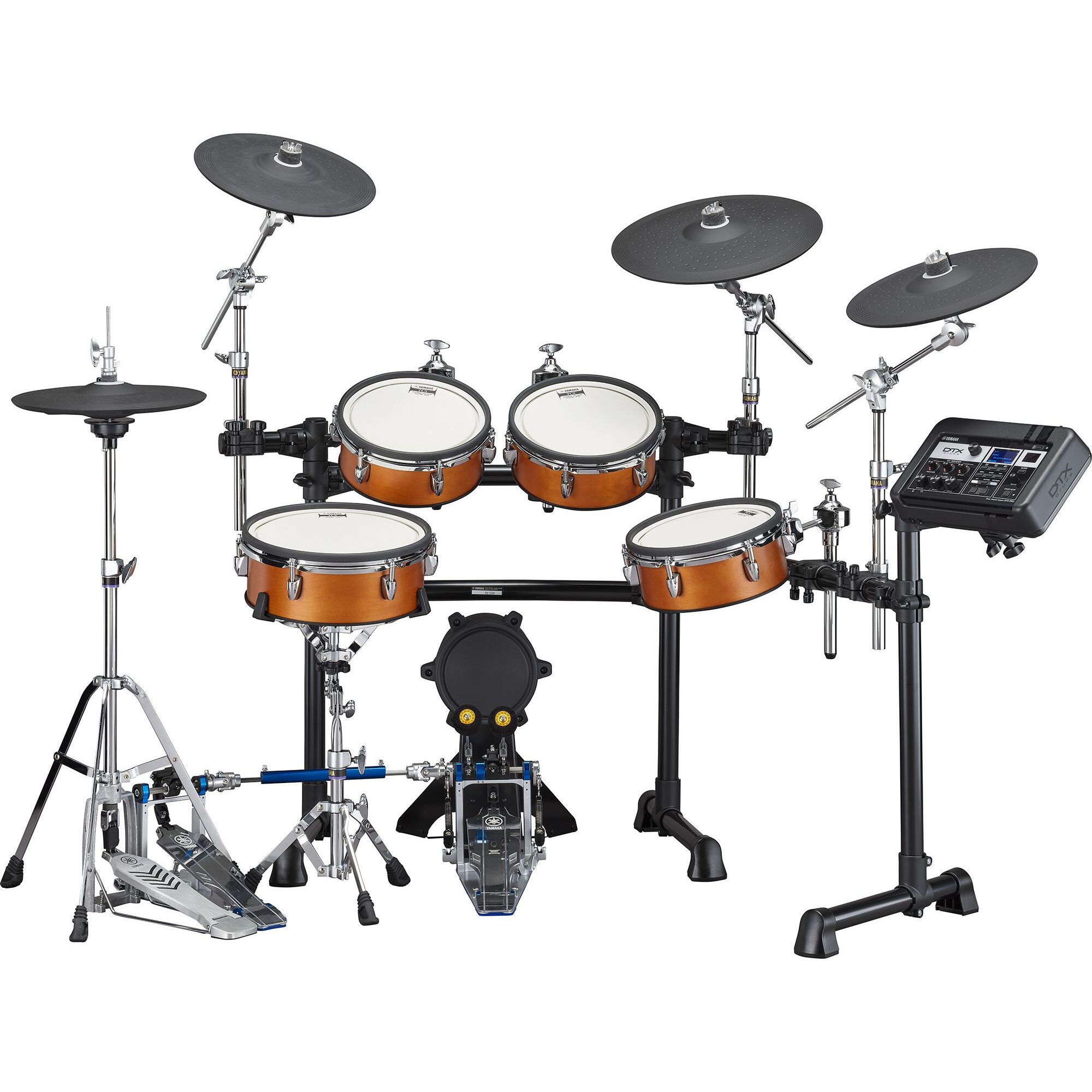

Yamaha DTX8K-M Digital Drums with Mesh Heads - Real Wood
High-end electronic drum kit series from Yamaha with Mesh heads and the DTX-PRO module, offering professional sound and playability.
Yamaha DTX8K-M Digital Drums with Mesh Heads - Real Wood
High-end electronic drum kit series from Yamaha with Mesh heads and the DTX-PRO module, offering professional sound and playability.
₹ 3,23,168
-8%MRP:₹ 3,51,270
Inclusive of all taxes
EMI options available
ASK AN EXPERT
Call our in-store experts for honest advice and clear answers. We're here to help you find the perfect gear, no guesswork needed.
080-40998370Technical Specifications
Feature | Specification |

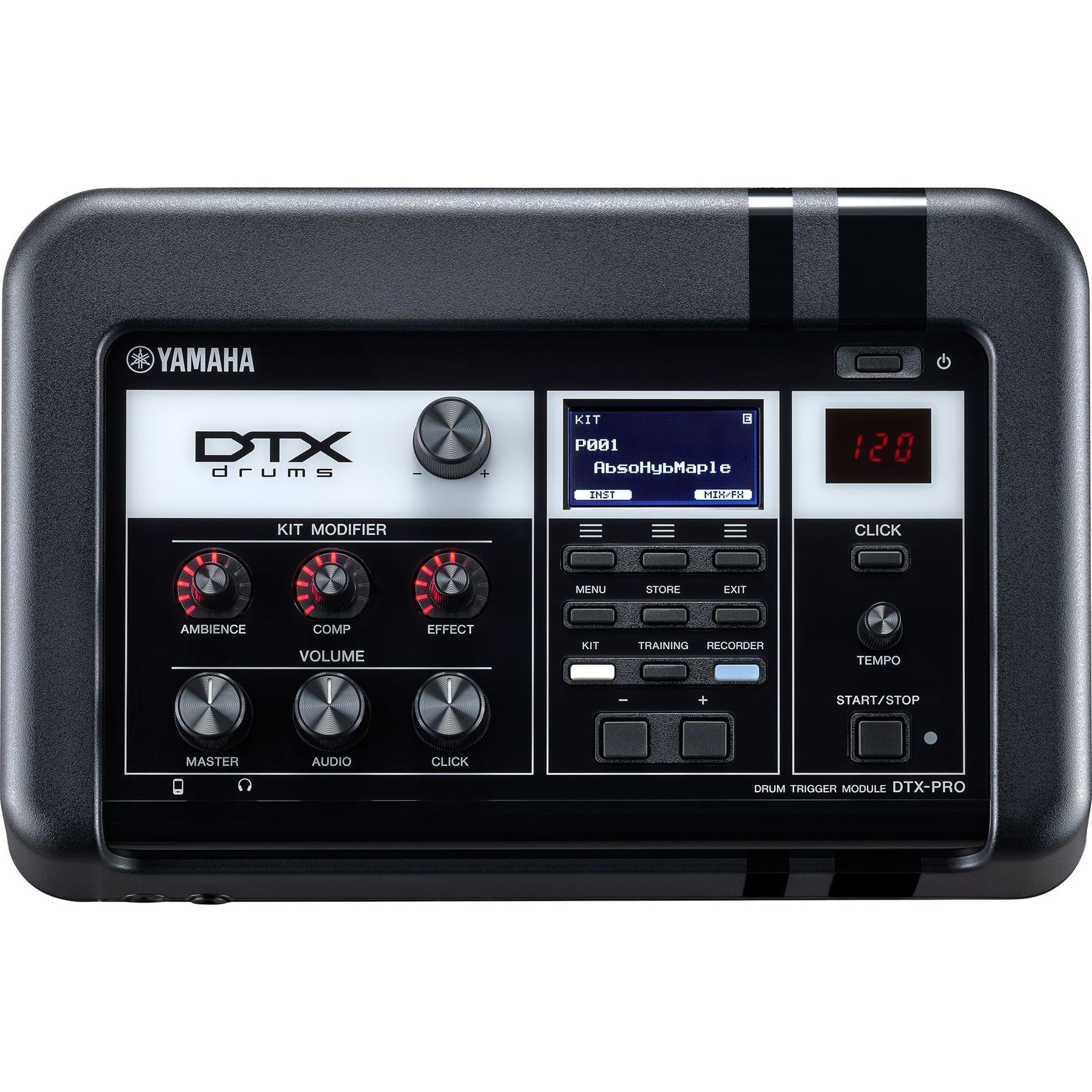

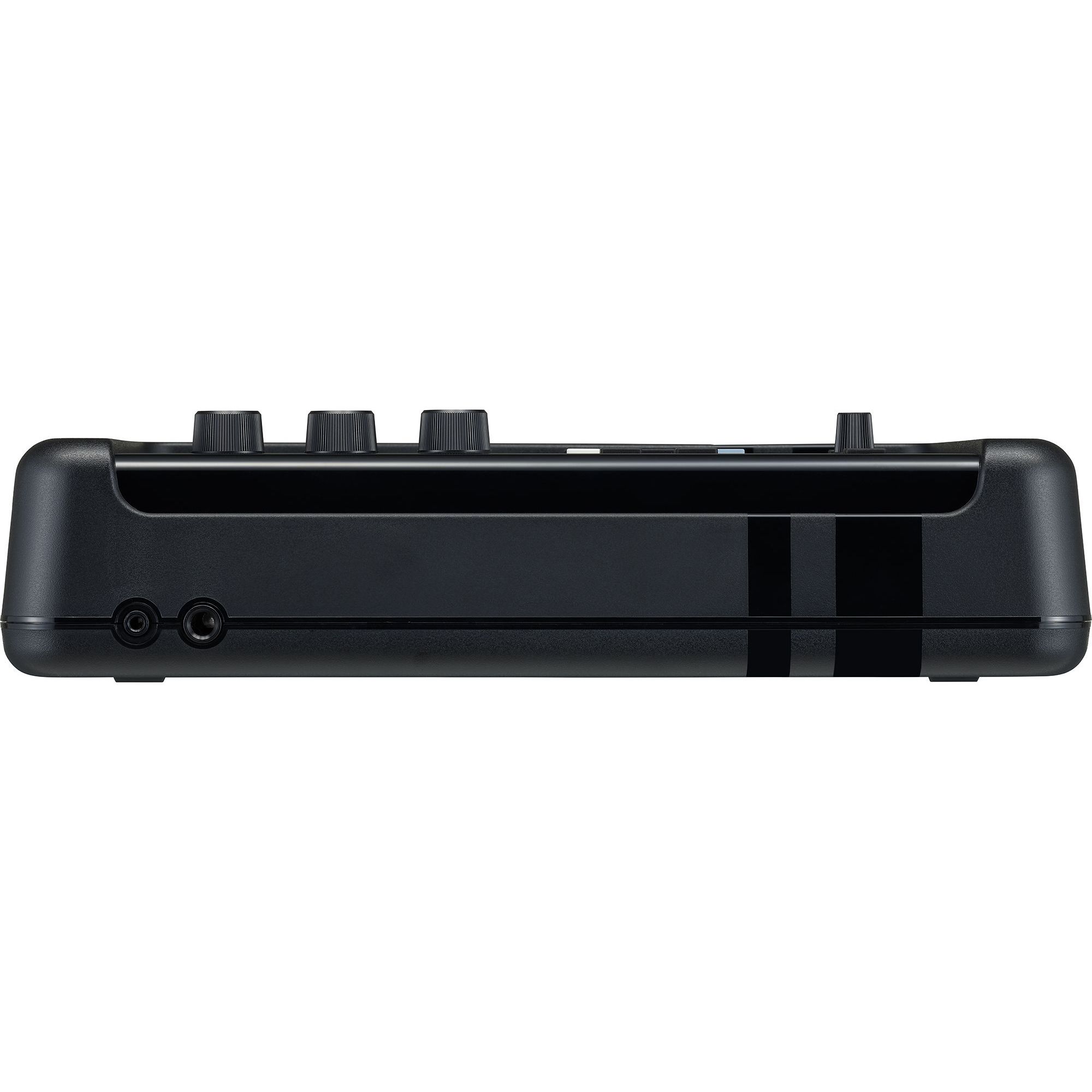

Module | DTX-PRO Drum Module |
Kit Configuration | |

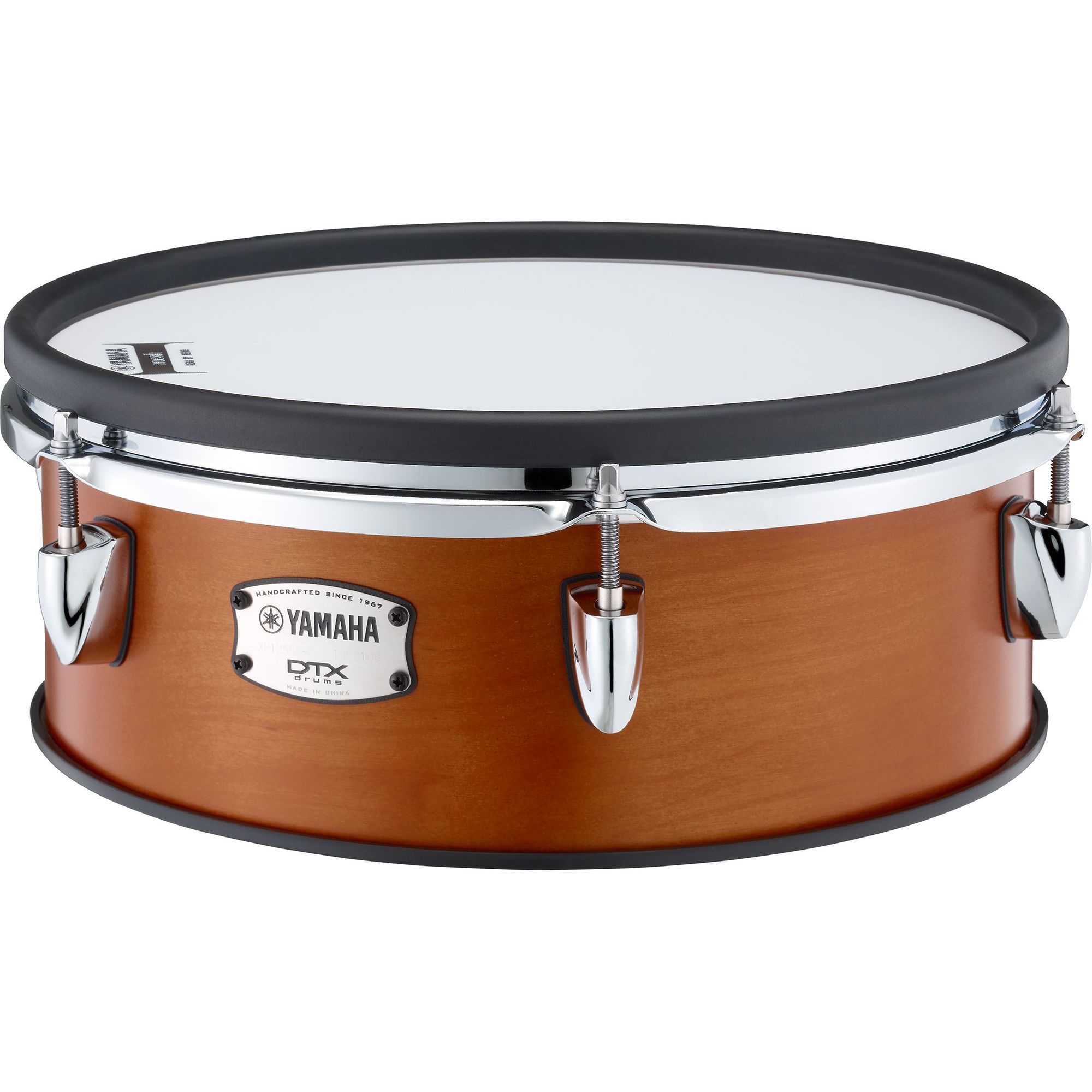

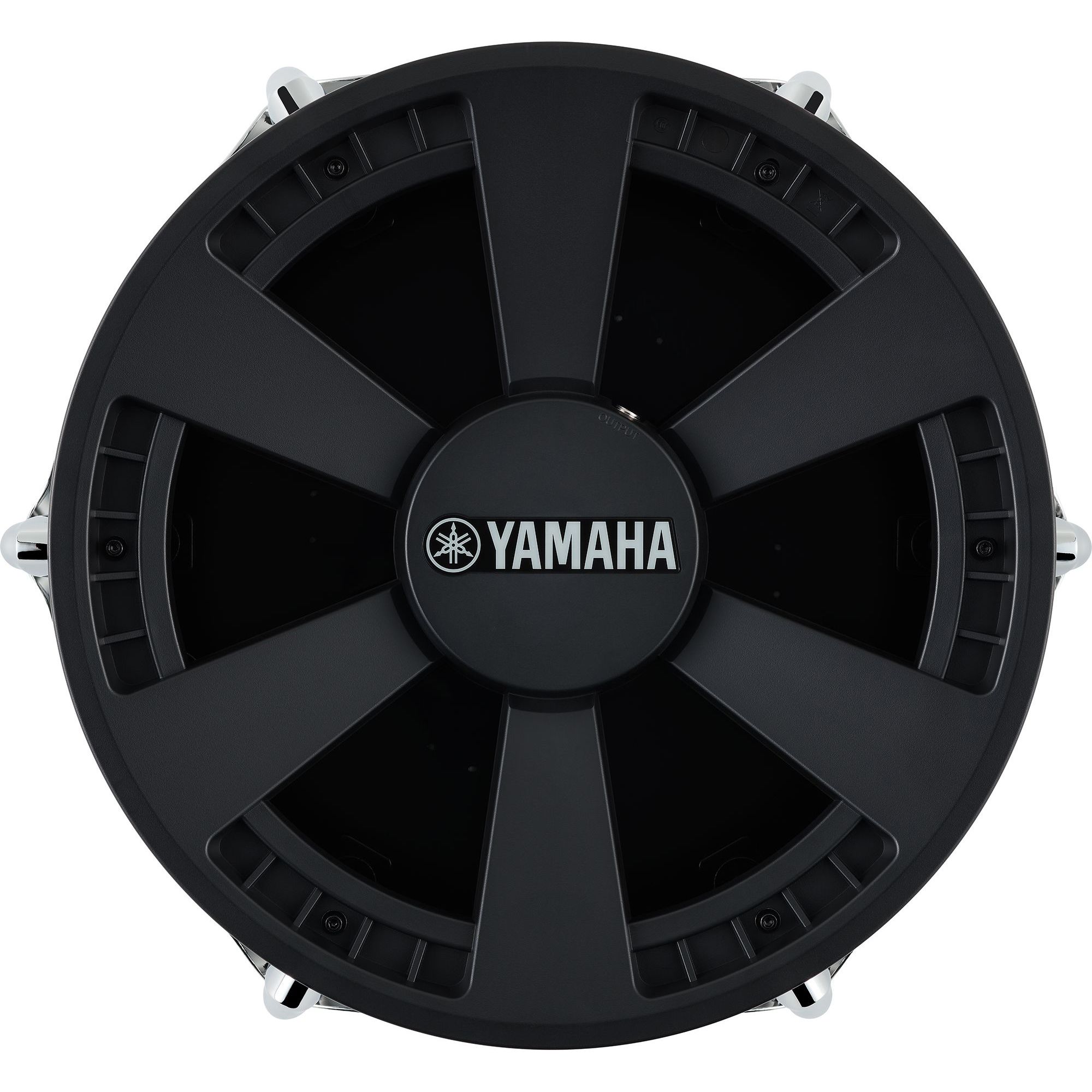

Snare Pad | 12-inch XP125SD-M Mesh Head, 2-Zone, Real Wood Shell |
Tom Pads | (3) 10-inch XP105T-M Mesh Heads, 2-Zone, Real Wood Shell |

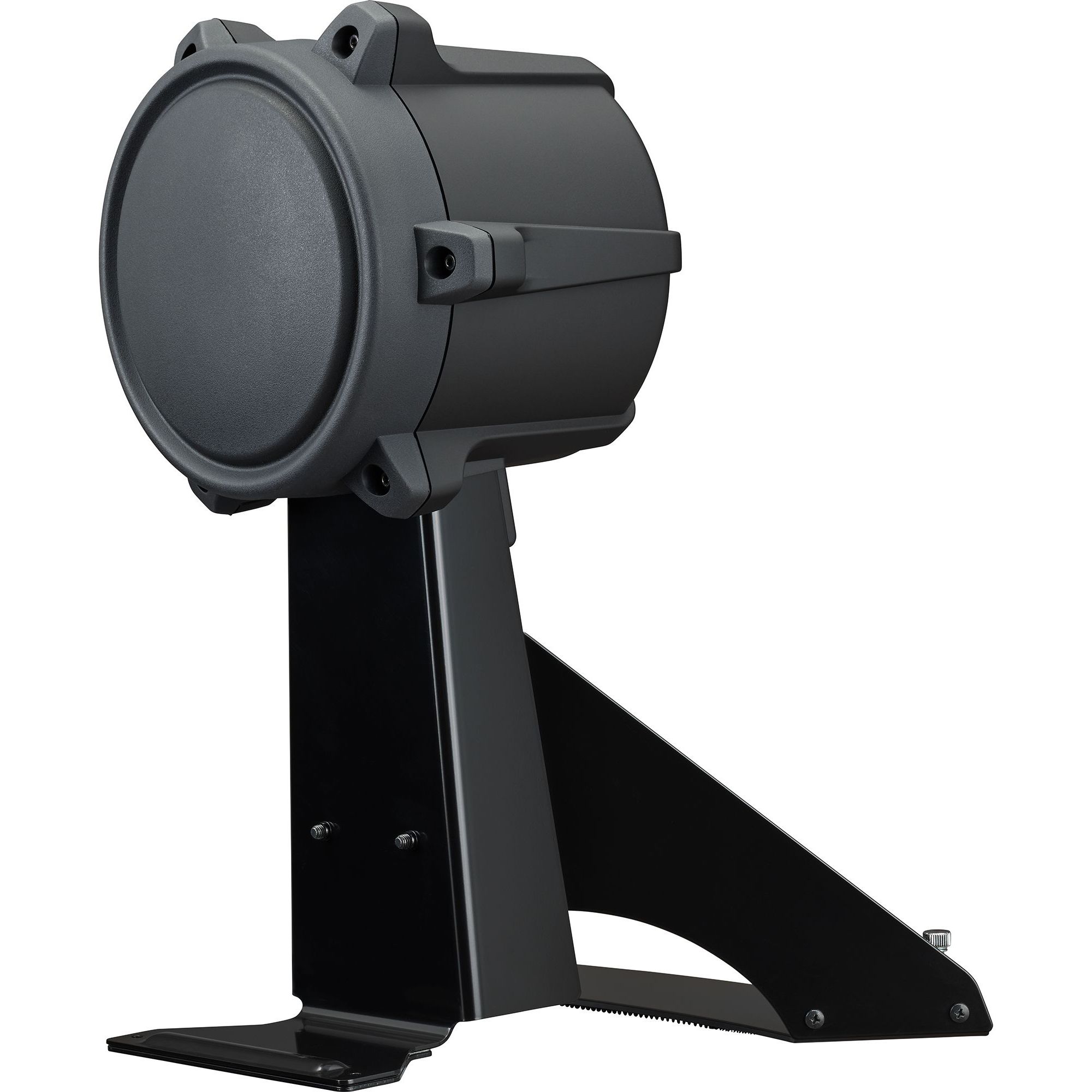

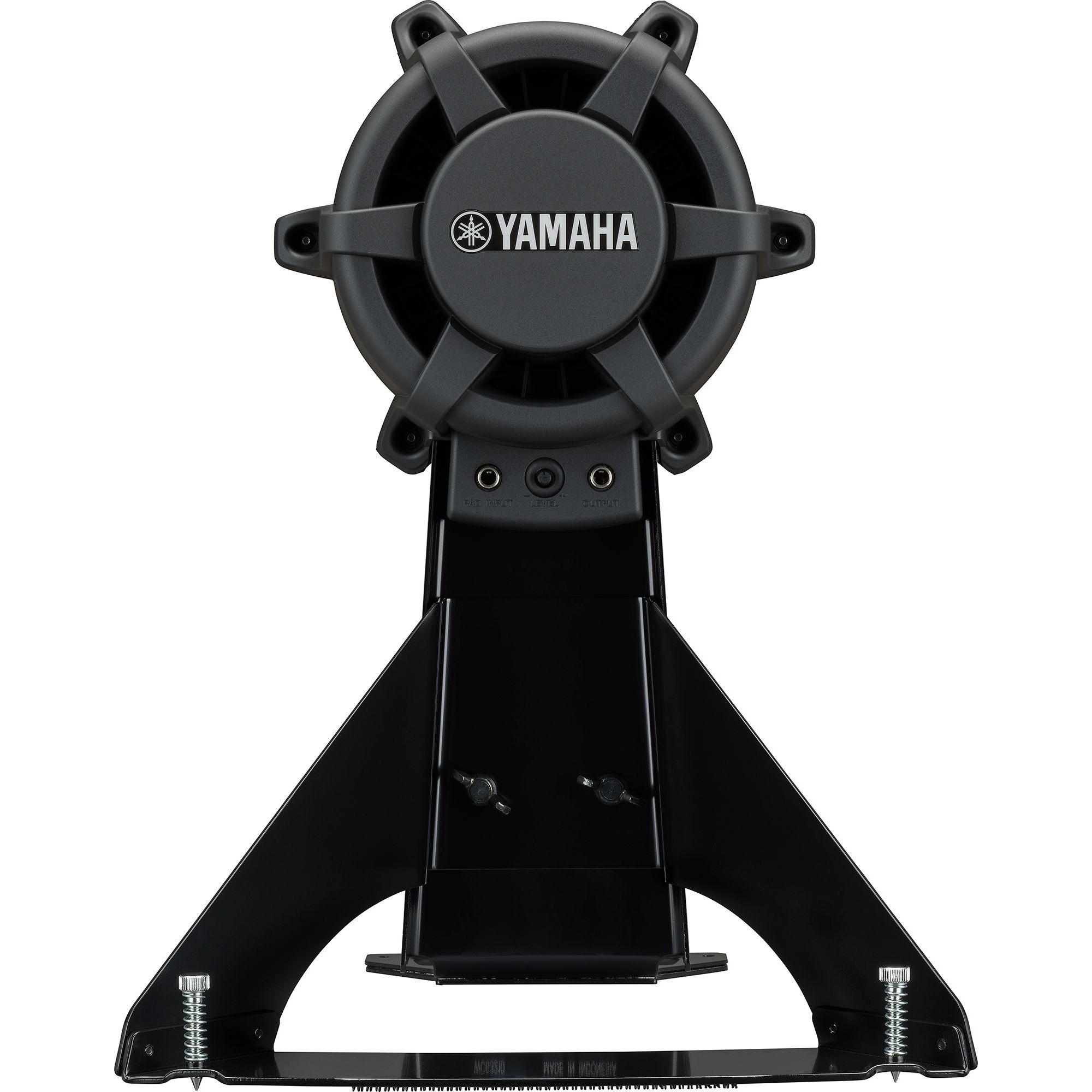

Kick Drum | 7.5-inch KP90 Rubber Head with Multi-Layer Cushion (double pedal compatible, pedal not included) |
Hi-Hat Cymbal | 13-inch RHH135 2-Zone Pad |
Hi-Hat Stand | Yamaha HS650A Hi-Hat Stand |

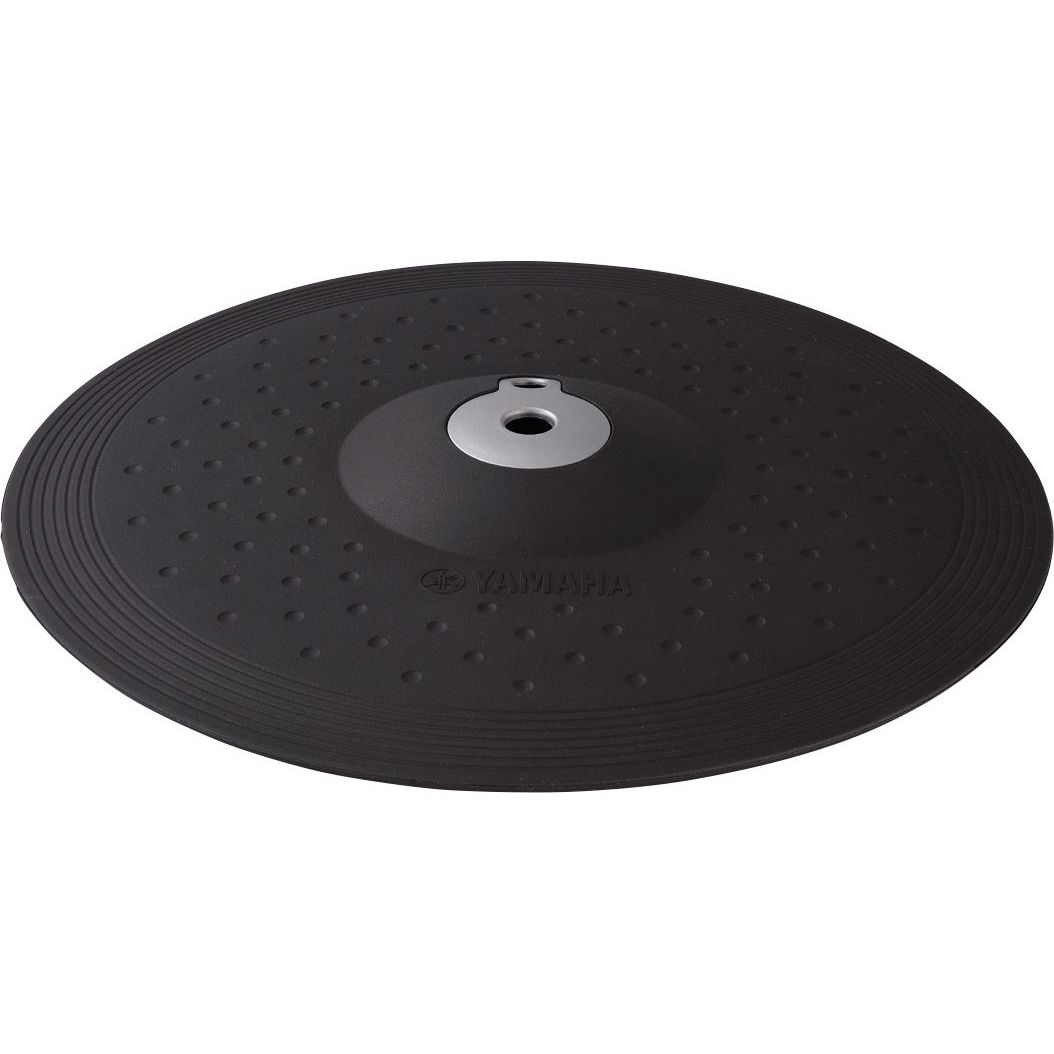

Crash Cymbals | (2) 13-inch PCY135 3-Zone Pads with Choke capability |
Ride Cymbal | 15-inch PCY155 3-Zone Pad with Positional Sensing |

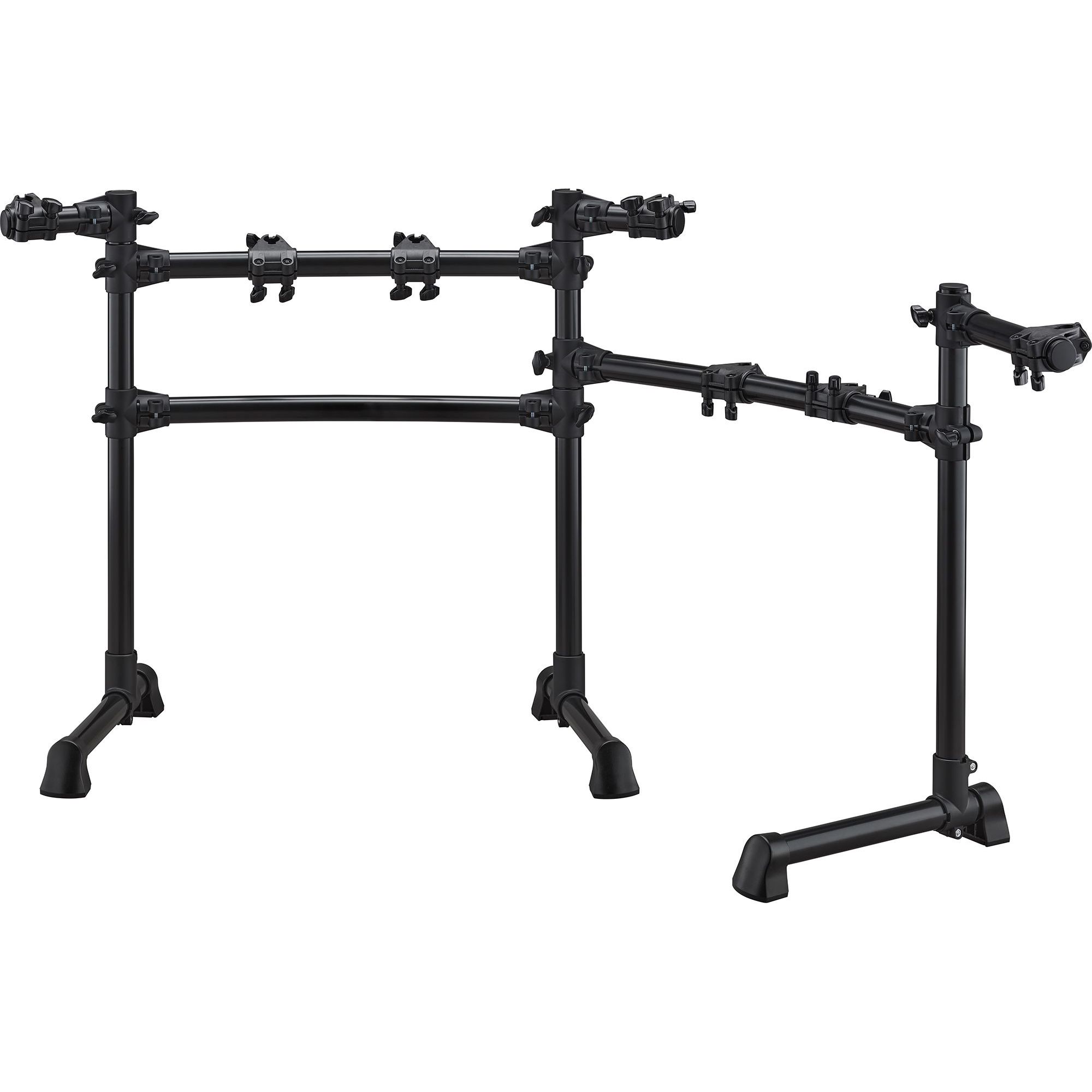

Rack System | RS8 Rack System |
Snare Stand | SS662 Snare Stand (for 12" snare) |
Sound Engine | AWM2 (Advanced Wave Memory 2) |
Maximum Polyphony | 256 notes |
Voices | 712 Drum and Percussion Voices |
Drum Kits | 40 Preset Kits, 200 User Kits |
Kit Modifier | AMBIENCE, COMPRESSION, EFFECT (dedicated knobs) |
Effects (Instrument) | EQ, Compressor, Transient, Insertion Effects (per channel) |
Effects (Kit/Master) | Ambience, Effect 1, Effect 2, Master Comp, Master Effect, Master EQ, Phones EQ |
Metronome | 30 User Click Sets, 30-300 BPM (Tap Tempo), various time signatures/subdivisions |
Training Functions | 10 Training Types, 37 Preset Training Songs, 1 User Song |
Audio Files | Import Limit: 1000 WAV files; Max loadable sample time: 760 sec (Mono), 380 sec (Stereo) @ 44.1 kHz, 16 Bit |
Recorder | Internal Memory: Max 90 seconds; USB Flash Drive: Max 90 minutes per file (WAV 44.1 kHz, 16-Bit, Stereo) |
Display | Full Dot LCD (128x64 Dots) |

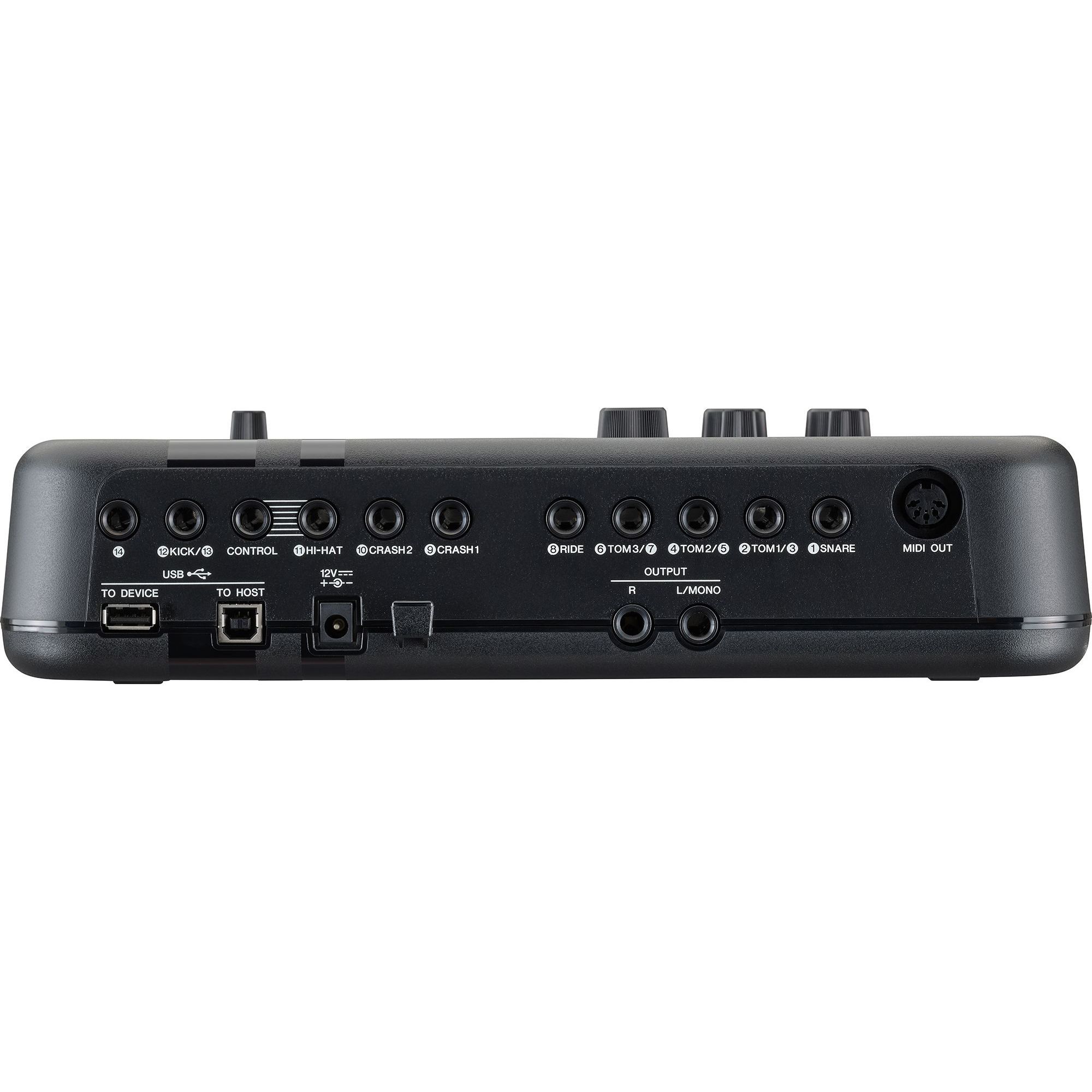

Connectivity | |
DC In | DC IN (+12V) |
Headphones | 1/4" (6.35 mm) Stereo Jack x 1 |
AUX IN | 1/8" (3.5 mm) Stereo Mini Jack x 1 |
Output | (2) 1/4" (6.35 mm) TRS (L/Mono, R) |
USB | USB TO DEVICE (Type A), USB TO HOST (Type B) |
MIDI | 5-Pin DIN MIDI OUT x 1 |
Trigger Inputs | 10 x 1/4" (6.35 mm) TRS (supports up to 14 pads with Y-cables) |
Power Consumption | 11 W (module) |
Module Dimensions | 30.3 x 19.6 x 6.6 cm (11.9 x 7.7 x 2.6") |
Module Weight | 1.5 kg (3.3 lbs) |
Average Footprint | 1,100 mm x 1,500 mm (approx.) |
Kit Weight | 45.88 kg (101.15 lbs) (entire kit, approximate) |
Included Software | Cubase AI download code |
Included Accessories | PA-150B Power Adaptor, Module Holder, Module Holder Wing Bolts (x4), Owner's Manual, 10-Channel Snake Cable, Cable Bands, Drum Key |
Available Finishes | Real Wood, Black Forest |
