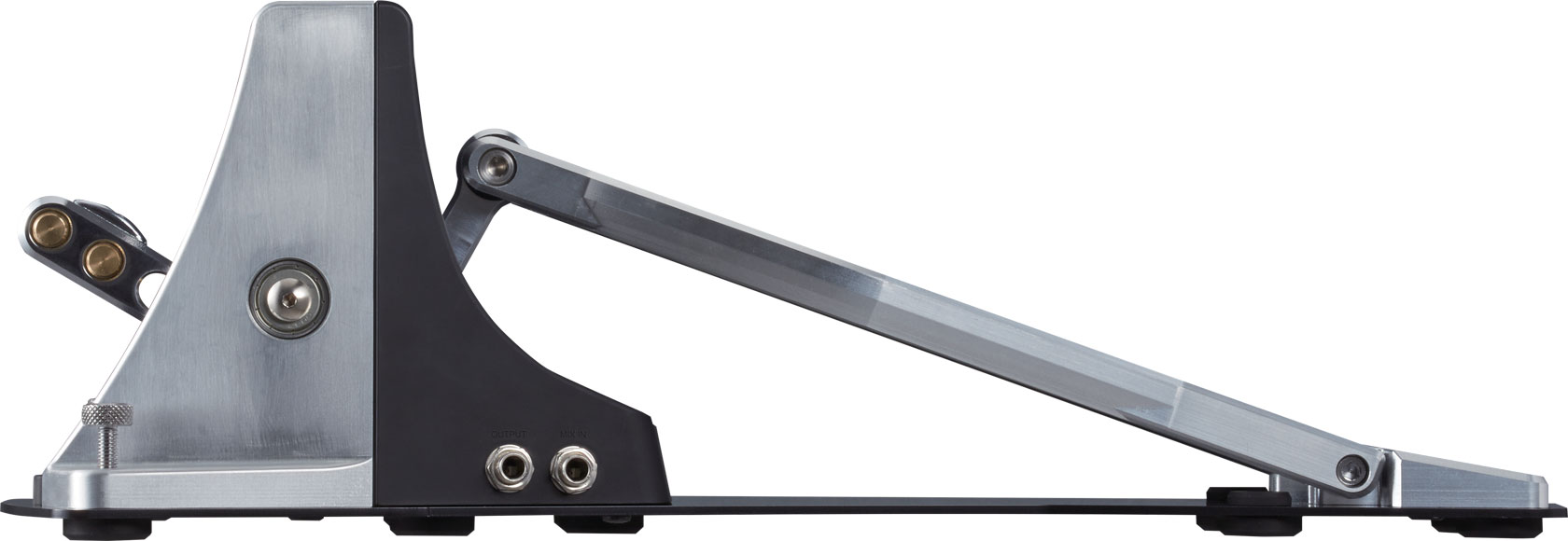

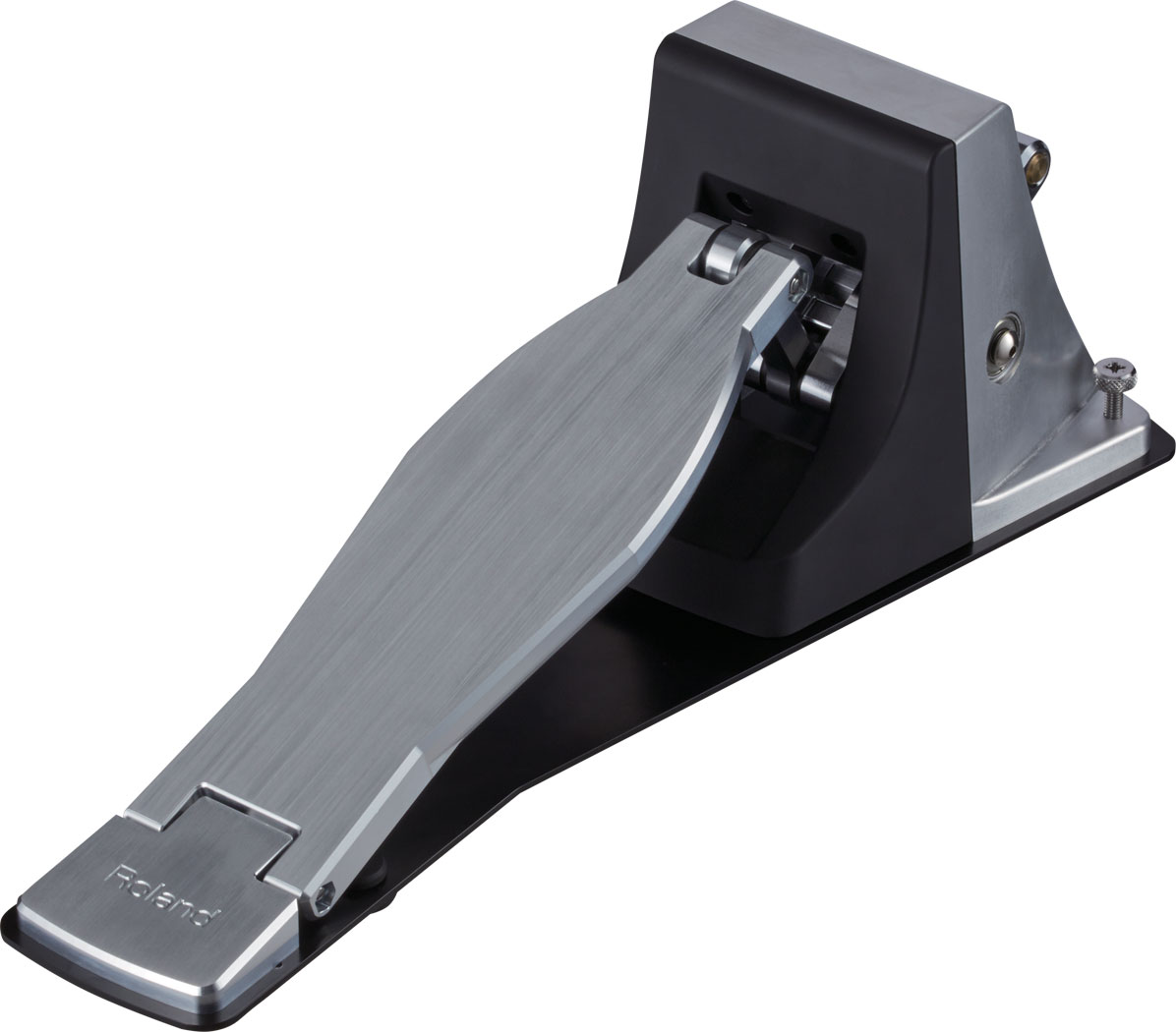

Low-noise kick trigger pedal for electronic drums, featuring a reverse-action mechanism for quiet practice and compact design.






Low-noise kick trigger pedal for electronic drums, featuring a reverse-action mechanism for quiet practice and compact design.
Inclusive of all taxes
EMI options available
Call our in-store experts for honest advice and clear answers. We're here to help you find the perfect gear, no guesswork needed.
080-40998370Feature | Specification |
Type | Integrated Kick Trigger Pedal (All-in-one unit) |

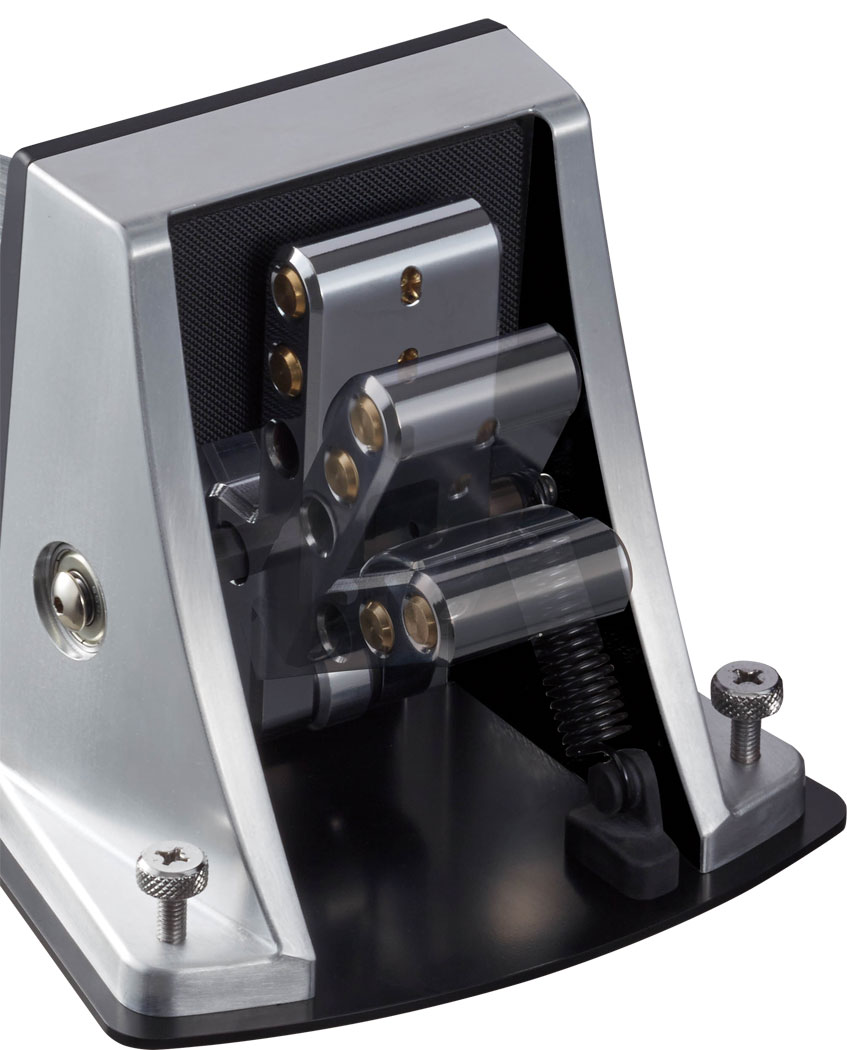

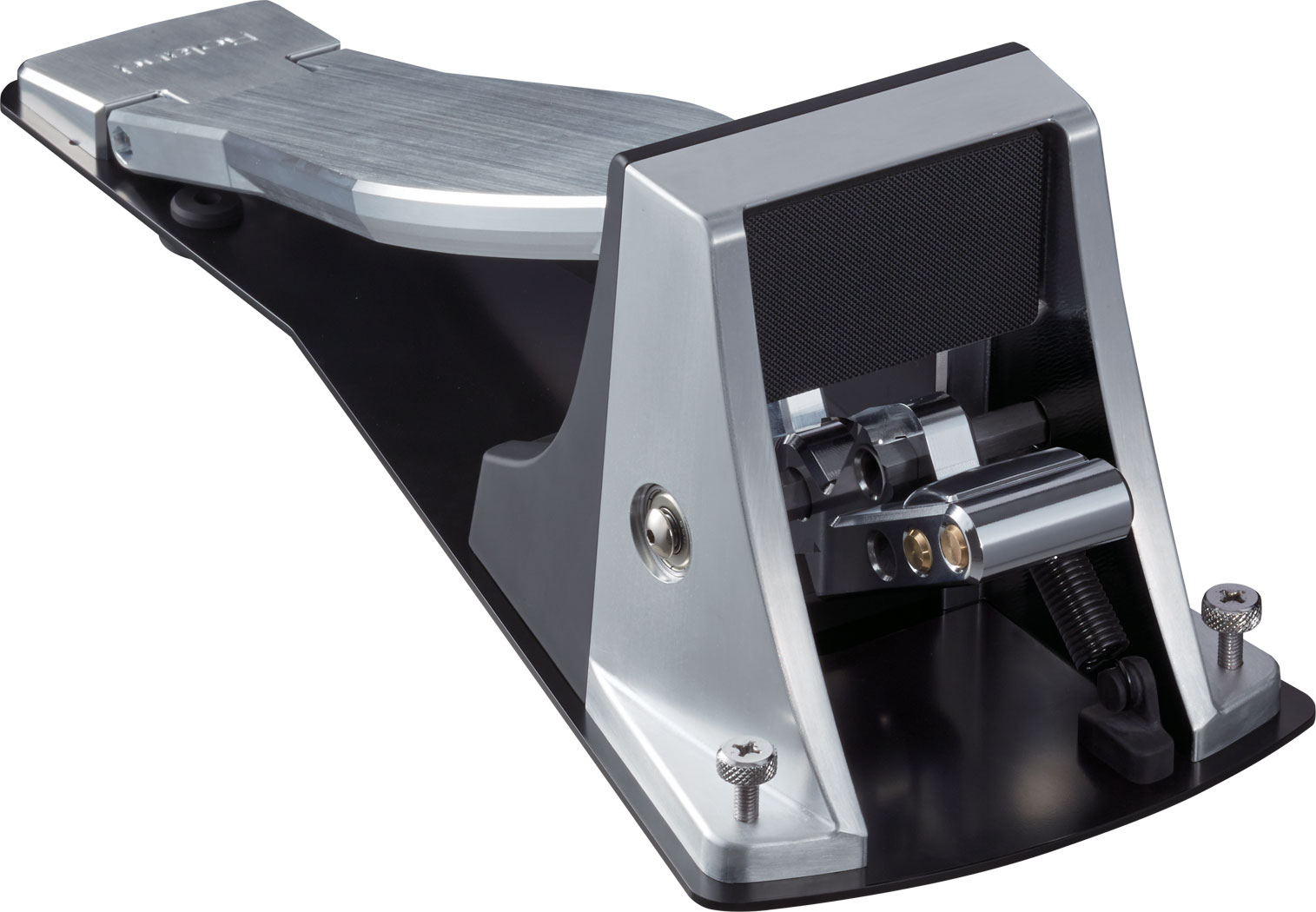

Trigger Mechanism | Reverse-action mechanical trigger (internal rubber buffer) |
Connectors | OUTPUT Jack: 1/4-inch phone type (for connecting to drum module) |
MIX IN Jack: 1/4-inch phone type (for connecting a second KT-10 or external single-trigger pad) | |
Control | Adjustable spring tension, Adjustable beater weights (removable) |
Compatibility | All Roland TD-Series V-Drums sound modules |
Roland TM-Series Trigger Modules | |
Roland SPD-series percussion pads (e.g., SPD-30, SPD-SX, SPD-20X) | |
Roland HandSonic (HPD-20) | |
Nominal Output Level | -10 dBu |
Power Supply | Not required (passive trigger) |
Dimensions (W x D x H) | 166 mm x 440 mm x 150 mm (6-9/16 inches x 17-3/8 inches x 5-15/16 inches) |
Weight | 3.0 kg (6 lbs 10 oz) |
Included Accessories | Owner's Manual, Connection Cable (Stereo), Wrench, Adjustment Weights (Large, Small) |
Color | Black |
Optional Accessories (Sold Separately) | USB Flash Memory (for modules supporting data backup), Drum Throne, Personal Drum Monitor (PM series) |
