Yamaha's FP9500 double pedal with direct drive: a stable sub-frame design, 2-way felt/plastic beaters, independent beater and footboard angles, self-locking spring tension and a semi-hard case.
Taxes included.
2 in stock
Yamaha's own frame design adds a sub-frame just below the rocker shaft for greater stability and durability. The bearings for both the main and remote beaters sit in this sub-frame, for smoother, more stable movement in a double pedal set-up.

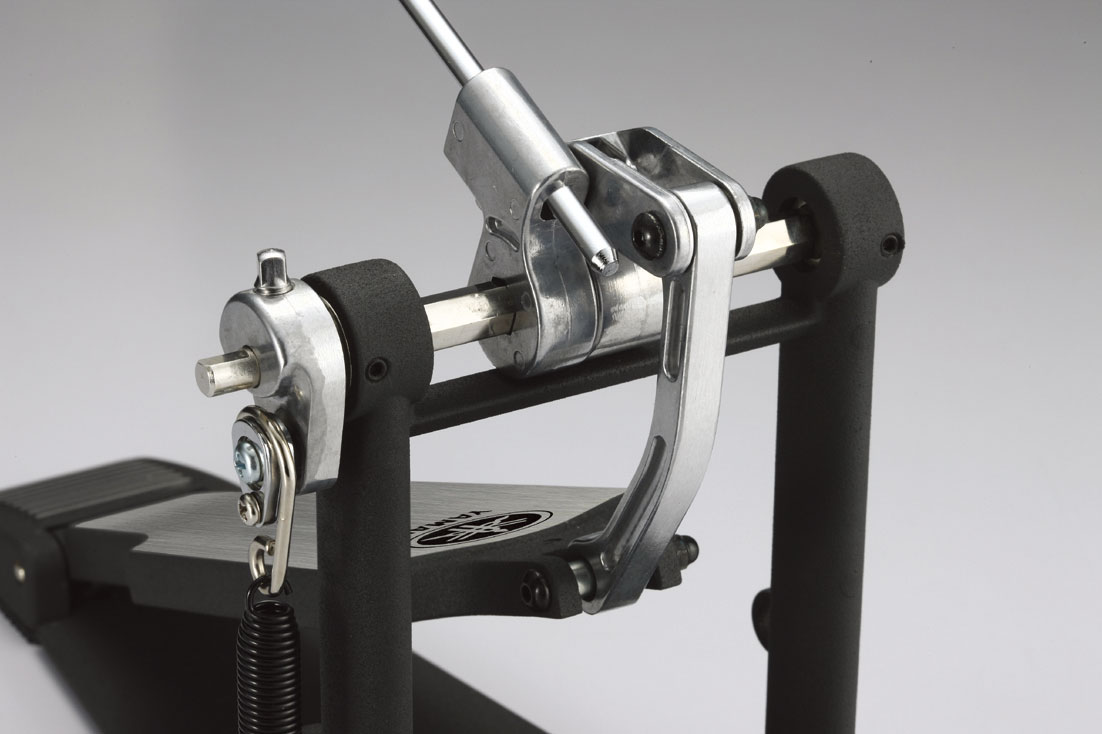

The direct drive links the footboard to the beater with a solid link instead of a chain, so the beater follows your foot immediately. It suits players who want a direct, connected feel for speed and precision.

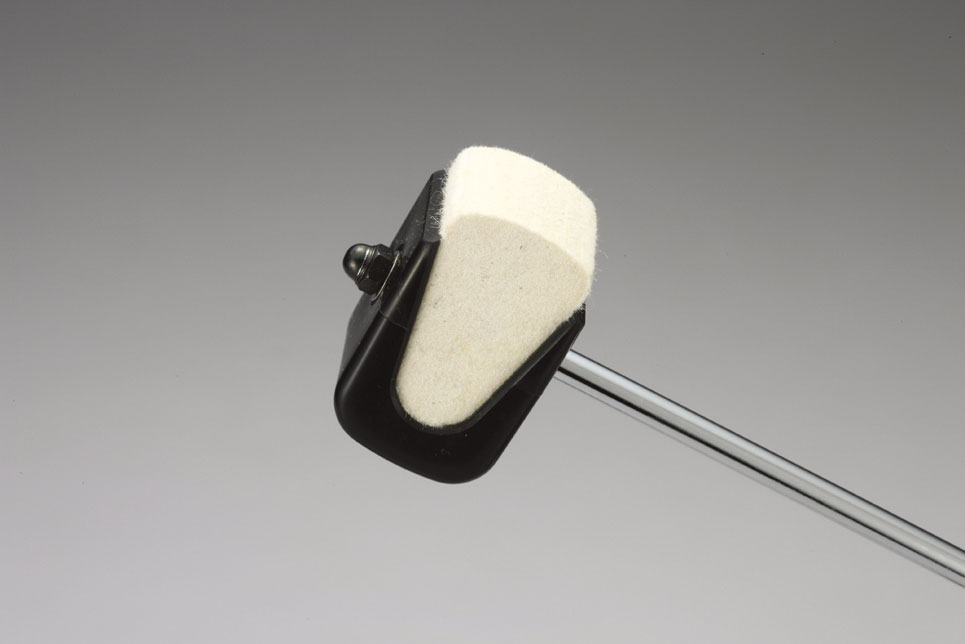

Each beater has two playing surfaces: a normal felt side, and a plastic side that gives a feel close to a wood beater. Turn it around to switch between a round, warm attack and a brighter, punchier one.

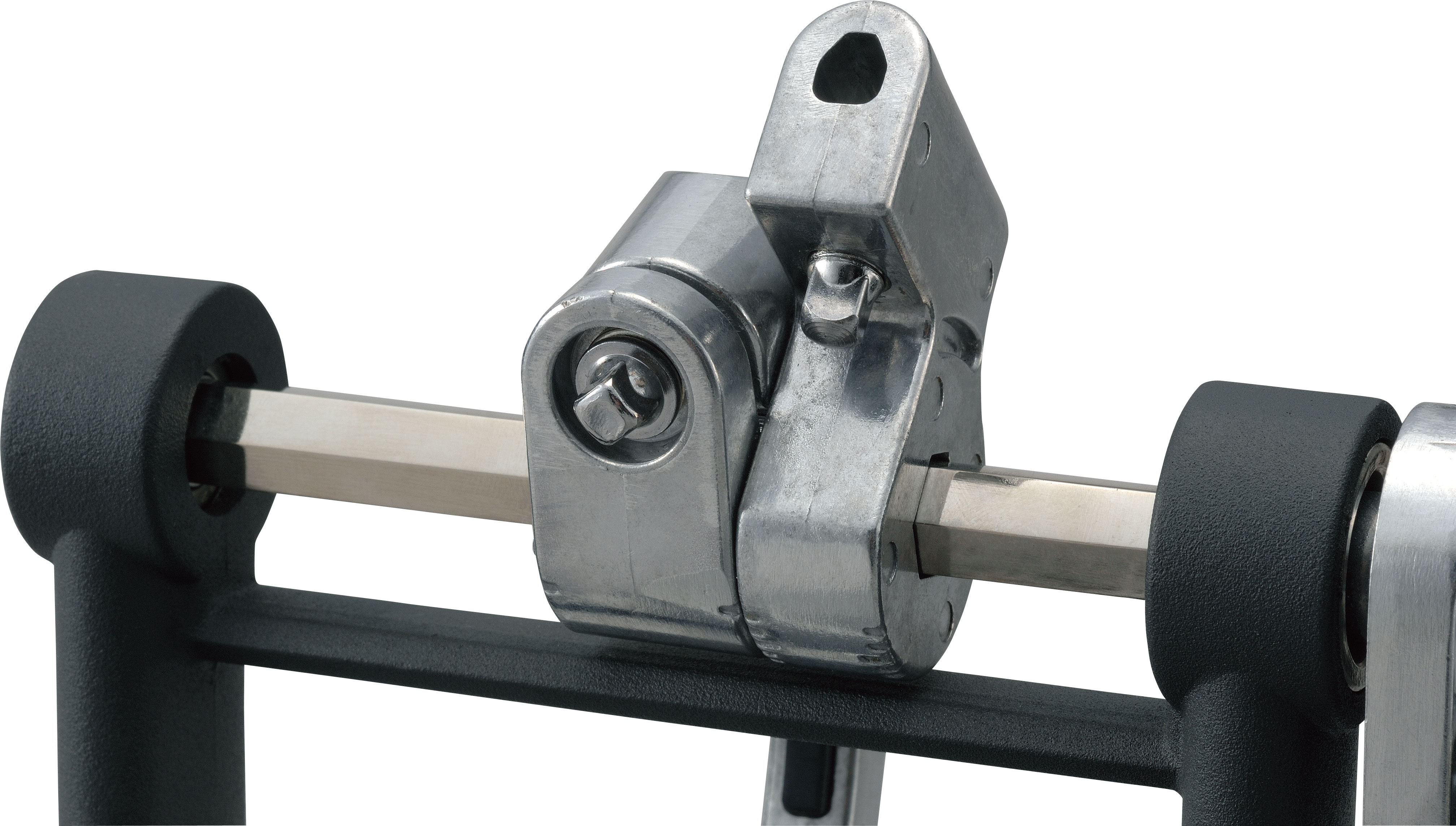

The teardrop-shaped shaft hole in the rocker holds the beater shaft securely, and the shaft's flat surface stops the 2-way beater from swivelling while you play, so the striking surface stays where you set it.
Loosen the adjustment screw to set the beater angle freely, together with the footboard angle, for the throw and power you like. The footboard angle is set separately, without affecting the beater angle, so you can also match the pedal heights.

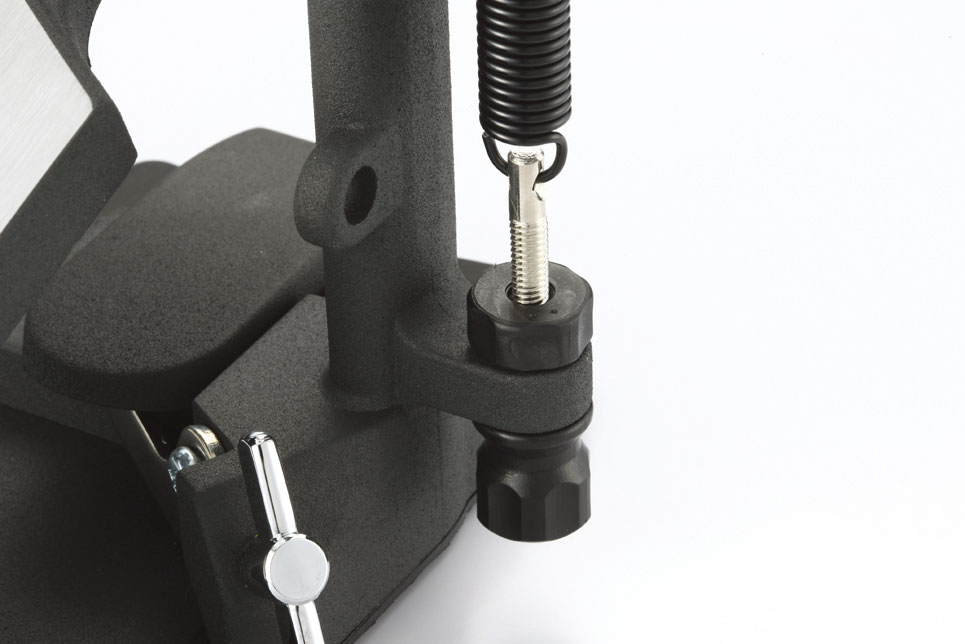

Adjust the spring tension easily with one hand, then a lock bolt secures the setting so it doesn't loosen during play. A spring roller with built-in precision bearings gives a smooth, natural action.

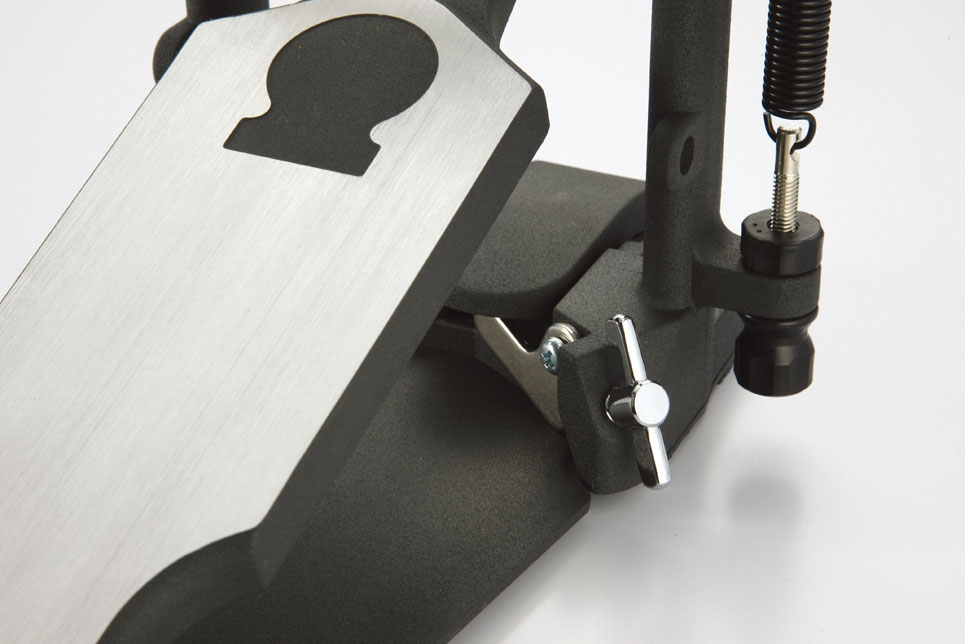

A wing bolt tightens the clamp firmly for secure attachment, and the clamp adapts to different bass drum hoop thicknesses. A narrower underplate lets you set the pedals closer together.

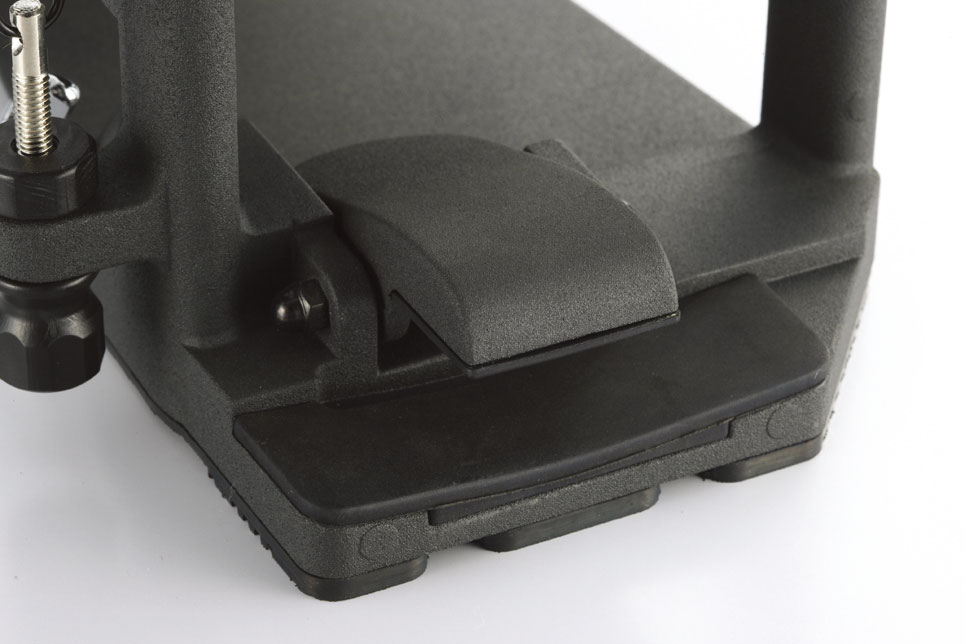

Rubber-coated tie rod ends keep the footboard and base frame from coming apart, so the pedal travels and sets up without fuss.
A universal joint on the rocker shaft gives angular flexibility for smoother movement of the remote pedal, and it's fixed with a single bolt and a bolt holding plate for a secure, simple set-up.
A newly designed spike on the slave pedal keeps it planted while you play.

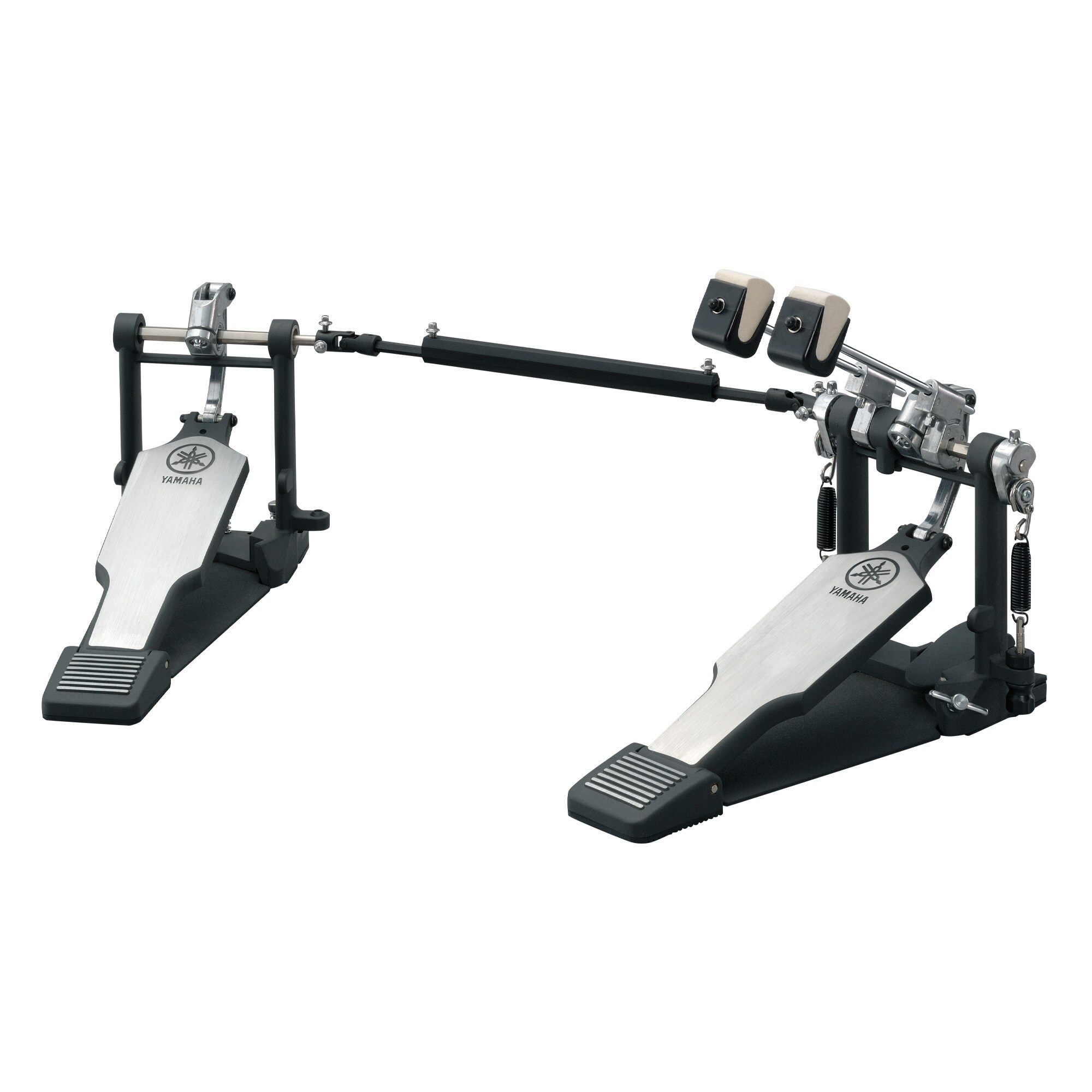

The Yamaha DFP9500D double bass drum pedal with two 2-way beaters and a semi-hard carrying case.

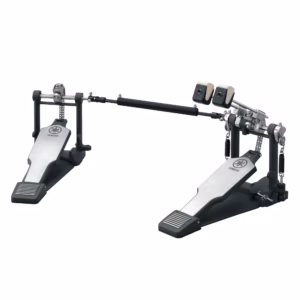

The chain drive gives a smooth, powerful stroke and converts to belt drive with the included belt. The direct drive links footboard and beater with a solid link for the most immediate response. Use the selector on this page to compare the FP9500 models we stock, or try them in the showroom.
The FP9 is Yamaha's newer flagship pedal, with a three-position Quick Adjusting Cam or Link, bearing chamber, weight adjustable beater and angle checker. The FP9500 is Yamaha's proven professional pedal with a 2-way beater and simpler set-up. We stock both; ask us to compare them in the showroom.
| Specification | Details |
|---|---|
| Brand | Yamaha |
| Series | FP9500 Series |
| Model | DFP9500D |
| Type | Double bass drum pedal |
| Drive | Direct |
| Specification | Details |
|---|---|
| Base plate | Yamaha base plate |
| Frame | Yamaha frame design with sub-frame below the rocker shaft |
| Hoop clamp | BD hoop clamp system, wing bolt |
| Footboard | Patternless footboard (standard length) |
| Footboard angle adjustment | Yes, independent of beater angle |
| Beater shaft rocker | Teardrop hole |
| Beater angle adjustment | Yes |
| Spring roller | Built-in bearings |
| Spring tension adjustment | With lock system |
| Tie rods | Rubber-coated tie rod ends |
| Universal joint | Smooth-moving, single bolt with bolt holding plate |
| Slave pedal | Newly designed spike |
| Underplate | Narrower, for closer setting |
| Specification | Details |
|---|---|
| Beater | 2-way (felt / plastic) x2 |
| Carrying case | Semi-hard |
