Yamaha's flagship FP9 double pedal with double chain drive: a three-position Quick Adjusting Cam to set the feel, bearing-smooth action, easy spring and angle adjustments and a semi-hard carrying case. All-bearing universal joint for a responsive secondary pedal.
Taxes included.
1 in stock

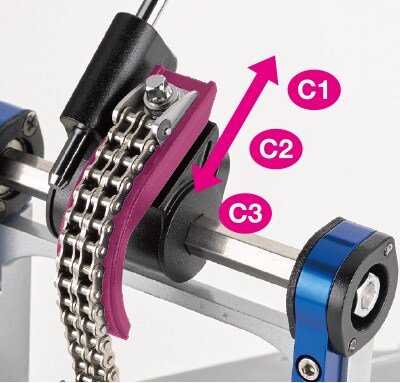

The double chain drive gains tension gradually through the stroke as you press the pedal. The Quick Adjusting Cam slides into three positions, C1 to C3, so you can fine-tune the action to the way you play: moving from C1 to C3 lightens the initial tension for an easier start to each stroke.

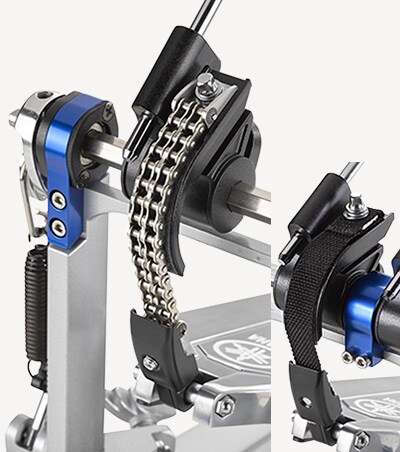

The durable, reliable double chain moves fluidly for a smooth, consistent stroke. Nylon belts are included for both pedals, so you can switch to belt drive for a different feel without buying anything extra.
The frame and bearing cover are each smoothed and precision-made before assembly, so they line up exactly with the central axis of the shaft and ball bearings. The result is a smooth, even rotation on every stroke (U.S. Pat. 10529306).
The Low Profile Stabilizing Hinge is smoothed and precision-made before assembly for smooth footboard movement, and ball bearings at the tip of each footboard (Ball Bearing Drive Connection) make the action smoother still.
The Easy Access Auto Lock spring adjustment moves the knob up where you can reach it, which makes the usually fiddly job of setting spring tension simple. The knob locks at a 90-degree angle, so it can't loosen itself mid-gig (U.S. Pat. 10360881).
Add weight to the beater to get the sound and feel you want. Aluminium (3g) and brass (9g) weights clip on and off easily, and two of each come with the pedal (one set per beater). (U.S. Pat. 9685146)
Set the beater angle and the footboard angle independently and freely, so you can get the reach and throw you like. The built-in angle checker makes it easy to find your settings again after transport or a change of kit.

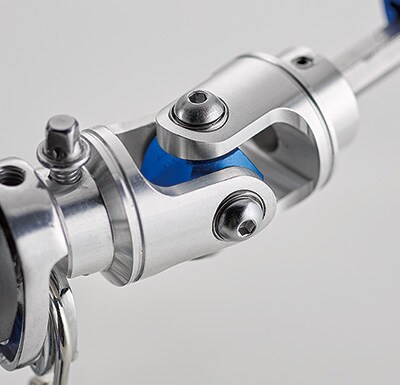

Newly designed universal joints have ball bearings on every axis. Their seamlessly smooth rotation dramatically improves the action and operability of the secondary pedal, so it responds smoothly under your other foot.

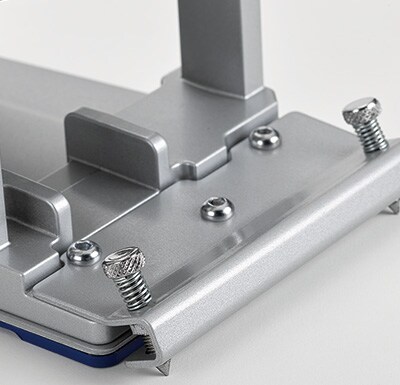

Anti-skid spikes on the heel of the main pedal (U.S. Pat. 9691367) and on the secondary pedal anchor stop either side from creeping, for stable, confident playing.
The pedal comes in its own semi-hard carrying case, with a drum key, so it travels safely between gigs and rehearsals.
The Yamaha DFP9C double bass drum pedal with 2 aluminium (3g) and 2 brass (9g) beater weights, 2 nylon belts, a drum key and a semi-hard carrying case.
The double chain drive gains tension gradually through the stroke for a smooth, flowing feel, and can be converted to belt drive with the included belt. The direct drive links footboard and beater directly for the most immediate response. Both have three action settings (C1-C3 or D1-D3). We stock the FP9C, FP9D, DFP9C and DFP9D; use the selector on this page to compare them, or try them in the showroom.
Yes. Replace the chain with the included nylon belt on each pedal to use it as a belt drive.
Yes. The angle checker lets you recreate your beater and footboard angle settings, the cam/link has three marked positions, and the spring knob locks so it doesn't drift.
Yes, Yamaha makes the DFP9CL, a left-footed version of the DFP9C. Ask us about availability.
Yes. The FP9C (double chain) and FP9D (direct drive) are the single pedals in the FP9 series. Use the selector on this page to switch to them.
| Specification | Details |
|---|---|
| Brand | Yamaha |
| Series | FP9 Series |
| Model | DFP9C |
| Type | Double bass drum pedal |
| Drive | Double chain |
| Specification | Details |
|---|---|
| Action adjustment | Quick Adjusting Cam, 3 positions (C1-C3) |
| Axle | Axle Stabilizing Bearing Chamber (U.S. Pat. 10529306) |
| Hinge | Low Profile Stabilizing Hinge (U.S. Pat. 10529306) |
| Footboard tip | Ball Bearing Drive Connection |
| Spring adjustment | Easy Access Auto Lock (U.S. Pat. 10360881) |
| Beater | Weight Adjustable Beater (U.S. Pat. 9685146) |
| Angle adjustment | Independent beater / footboard angle, with angle checker |
| Heel | Anti-skid heel spikes (U.S. Pat. 9691367) |
| Universal joint | All Bearing Universal Joint |
| Secondary pedal | Secondary Pedal Anchor with spikes |
| Specification | Details |
|---|---|
| Beater weights | Aluminium 3g x2, brass 9g x2 |
| Nylon belt | x2 |
| Drum key | x1 |
| Carrying case | Semi-hard, x1 |
